Shift Unit, Servicing
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Breather Tube Tool :T10203
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

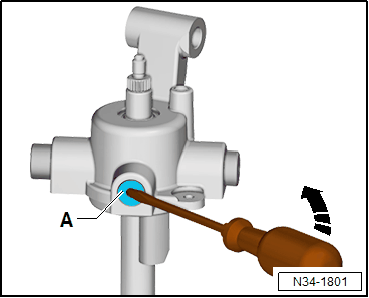

-- Remove the outer part of the locking elbow.
-- Pry out the locking elbow with a screwdriver.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
Installed Position:
Marking -1- faces toward marking -2- on selector cover.
