Overview - Transmission Housing And Clutch Housing

WARNING: This page is about a different variant/trim than selected.

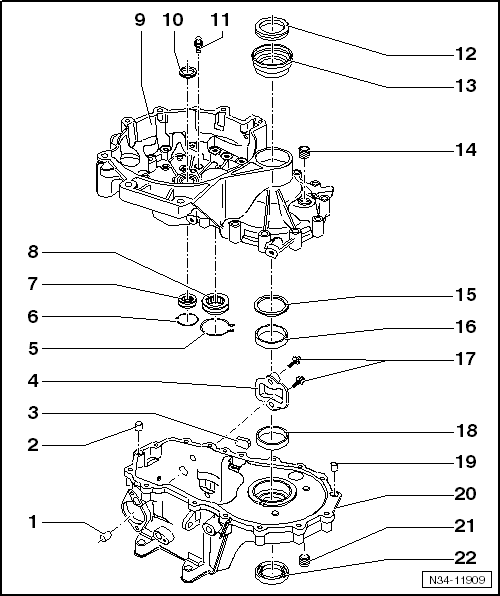

Fig 1: Exploded View Of Transmission Housing And Clutch Housing
GWWN34-11909Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Sleeve
  2. Alignment Sleeve
  3. Magnet
    • Held in place by housing joint surface
  4. Cap
    • Apply Sealing Compound to the sealing surface before installing.
  5. Circlip
    • Insert in roller bearing groove
  6. Circlip
    • Insert in roller bearing groove
  7. Cylindrical Roller Bearing
  8. Cylindrical Roller Bearing
  9. Clutch Housing
  10. Input Shaft Seal
    • Pry out with a screwdriver
    • Installing. Refer to  22
  11. Ball Stud
    • 20 Nm
    • Remove grease already present
    • Grease with Grease for Clutch Disc Shaft Splines.
  12. Right Flange Shaft Seal
  13. Sleeve
  14. Transmission Fluid Filler Plug
    • Tightening specification: Refer to Figure
  15. Shim
  16. Outer Race/Tapered Roller Bearing
  17. Bolt
    • 5 Nm +90°
    • Replace after removing
  18. Outer Race/Tapered Roller Bearing
  19. Alignment Sleeve
  20. Transmission Housing
  21. Oil Drain Plug
    • Tightening specification: Refer to Figure
  22. Seal
    • Replace when the transmission is installed. Refer to LEFT SEAL, REPLACING .
    • For the left flange shaft
GWWA34-0309Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
