Overview - Hood Locking And Unlocking Components

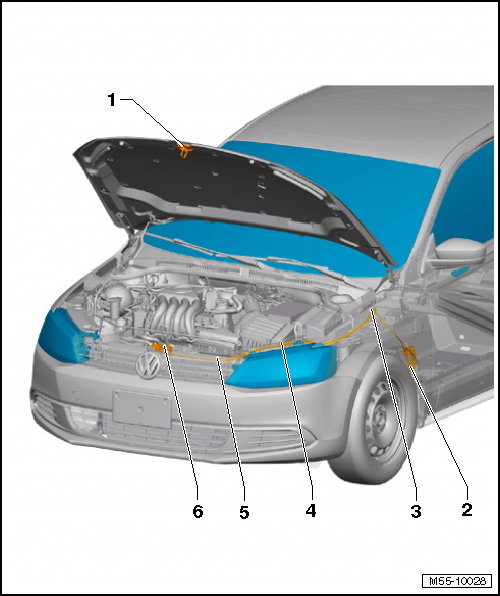

Fig 1: Hood Locking And Unlocking Components Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Catch
   • Removing and installing, refer to HOOD CATCH .
   • Adjusting, refer to CATCH, ADJUSTING .
2. Release Lever
   • Removing and installing, refer to OPERATING LEVER .
3. Cable
   • From the hood release lever -2- to the coupling -4- on the cable
4. Cable Coupling
   • The cable coupling is located above the headlamp on the driver side.
   • Disconnecting, refer to HOOD CABLE, DISCONNECTING .
5. Cable
   • From the cable coupling -4- to the hood latch -6-
   • Clipped into the cable coupling.
6. Hood Latch
   • Hood Latch, Removing and Installing, refer to HOOD LATCH .
   • Adjusting, refer to HOOD LATCH, ADJUSTING .
