Hood Latch, Adjusting

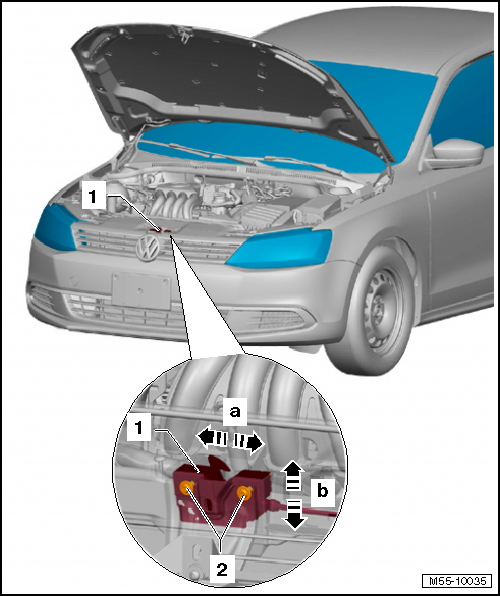

Fig 1: Identifying Hood Latch, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform the following:

-- Remove the radiator grille, refer to RADIATOR GRILLE .

-- If the bolts -2- are loosened, the hood latch -1- can be adjusted from side to side in direction of -a arrows- and in height in direction of -b arrows-.

Bolt tightening specification -2- : 12 Nm
