Catch, Adjusting

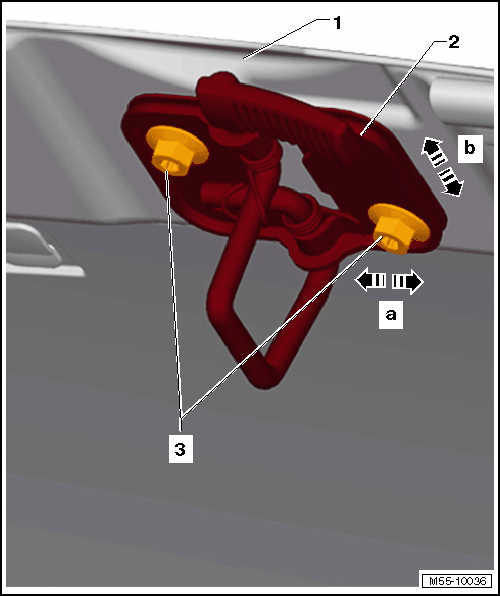

Fig 1: Identifying Hood Catch, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform the following:

-- Loosen the bolts -3-.

-- The hood catch -2- can now be adjusted in the oversized holes.

Bolt tightening specification -3- : 10 Nm
