Electrical And Electronic Components And Locations: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

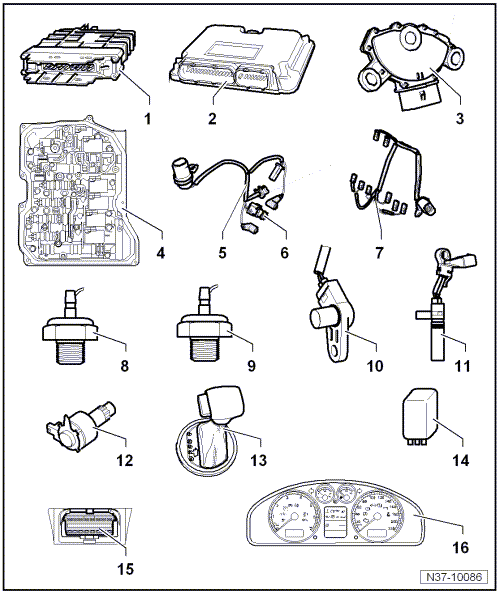

- Transmission Control Module -J217-
- The control module sends and receives data from the Data bus.
- Installed location for the Jetta MY 05 through 10, Jetta SportWagen (US)/Jetta Wagon (Canada) MY 09, Jetta SportWagen (US)/Golf Wagon (Canada) from MY 10. Refer to Transmission Control Module, Jetta MY 05 through 10, Jetta SportWagen (US)/Jetta Wagon (Canada) MY 09, Jetta SportWagen (US)/Golf Wagon (Canada) from MY 10 .
- Installed location for the Jetta, from MY 11, with a 2.0 L engine. Refer to Transmission Control Module, Jetta from MY 11, with a 2.0 L Engine .
- Installed location for the Jetta, from MY 11, with a 2.5 L engine. Refer to Transmission Control Module, Jetta from MY 11, with a 2.5 L Engine .
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Engine Control Module
- The control module sends and receives data from the Data bus.
- Installed location and removing and installing, refer to Removal and Installation .
- Multifunction Transmission Range Switch -F125-
- Installed location, refer to Multifunction Transmission Range Switch .
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Removing, installing and adjusting, refer to Multifunction Transmission Range Switch -F125- .
- Valve Body
- Installed location, refer to Valve Body .
- The components can be checked in "Guided Fault Finding" using the VAS 5051.
- 8 Pin Wiring Harness
- For the sensor.
- With the transmission fluid temperature sensor.
- Installed location, refer to 8 Pin Wiring Harness .
- Removing and installing, refer to WIRING HARNESS WITH 8 PIN CONNECTOR .
- Transmission Fluid Temperature Sensor -G93-
- Installed location, refer to 8 Pin Wiring Harness
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- 14 Pin Wiring Harness
- For the solenoid valve.
- Installed location, refer to 14 Pin Wiring Harness .
- Removing and installing, refer to WIRING HARNESS WITH 14 PIN CONNECTOR .
- Automatic Transmission Hydraulic Pressure Sensor 1 -G193-
- Not installed in all transmissions.
- Installed location, refer to Automatic Transmission Hydraulic Pressure Sensor 1 and Sensor 2 .
- Automatic Transmission Hydraulic Pressure Sensor 2 -G194-
- Not installed in all transmissions.
- Installed location, refer to Automatic Transmission Hydraulic Pressure Sensor 1 and Sensor 2 .
- Transmission Input Speed Sensor -G182-
- Installed location, refer to Transmission Input and Output Speed Sensors .
- Removing and installing, refer to TRANSMISSION INPUT SPEED SENSOR .
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Transmission Output Speed Sensor -G195-
- Installed location, refer to Transmission Input and Output Speed Sensors .
- Removing and installing, refer to Transmission Output Speed Sensor -G195- .
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Shift Lock Solenoid -N110-
- Installed location: The shift lock solenoid is located in the selector mechanism.
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Tiptronic Switch -F189-
- Installed location, refer to Tiptronic Switch .
- Can be checked in "Guided Fault Finding" using the VAS 5051.
- Terminal 50 Power Supply Relay -J682-
- Inside the engine compartment E-box.
- Diagnostic Connection
- Installed location, refer to Diagnostic Connection .
- Transmission Range Display -Y6-
- Installed location, refer to Transmission Range Display .
- Removing and installing, refer to Removal and Installation .
