Tiptronic Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

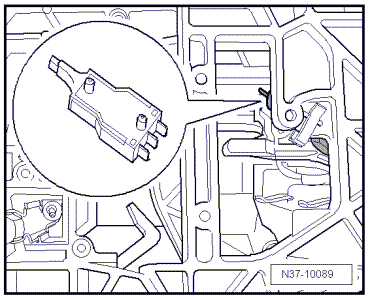

Fig 1: Identifying Tiptronic Switch F189
GWWN37-10089Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installed location: The Tiptronic switch is integrated in the selector mechanism.

If the vehicle has a multifunction steering wheel, check the buttons on the steering wheel and the corresponding wire connections.
