Automatic Transmission Hydraulic Pressure Sensor 1 and Sensor 2

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

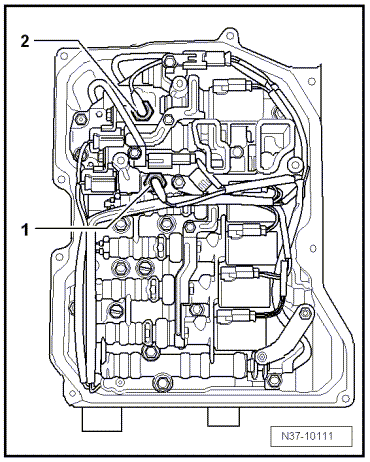

Fig 1: Identifying Automatic Transmission Hydraulic Pressure Sensor 1 G193 And Automatic Transmission Hydraulic Pressure Sensor 2 G194
GWWN37-10111Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

These sensors are not installed in all transmissions.

Installed location:

Automatic transmission hydraulic pressure sensor 1 -1- and automatic transmission hydraulic pressure sensor 2 -2- are inside the valve body.
