Transmission Control Module, Jetta from MY 11, with a 2.0 L Engine

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

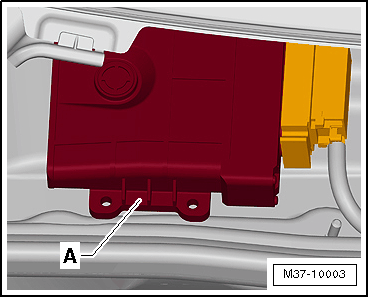

Fig 1: Identifying Transmission Control Module, Jetta MY 11
GWWM37-10003Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installed location: The control module -A- is located inside the plenum chamber on the right side.

-- The plenum chamber cover must be moved. Refer to Description and Operation .
