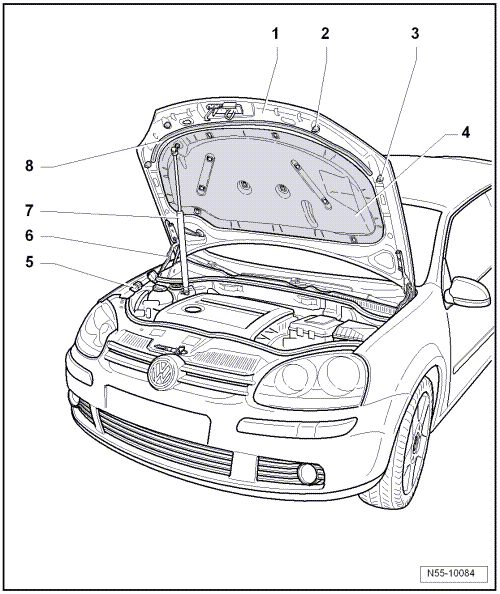

Hood Assembly Overview
- Hood
- Removing and Installing HOOD
- Adjusting HOOD, ADJUSTING
- Adjusting buffer
- Qty. 2
- Adjusting HOOD, ADJUSTING
- Rubber stop
- Qty. 2
- Insulation
- Removing and Installing INSULATION
- Guide piece
- Qty. 2
- Hinge
- Removing and Installing HOOD HINGE
- Adjusting HOOD, ADJUSTING
- Gas strut
- Removing GAS STRUT
- Venting Gas GAS-FILLED STRUT VENTING
- Seal
- Secured to hood interior with 17 clips.
