Hood Hinge

NOTE:

Removing and installing is described only for the left hood hinge. Removing and installing right hood hinge is similar

Removing

-- Hood, removing HOOD

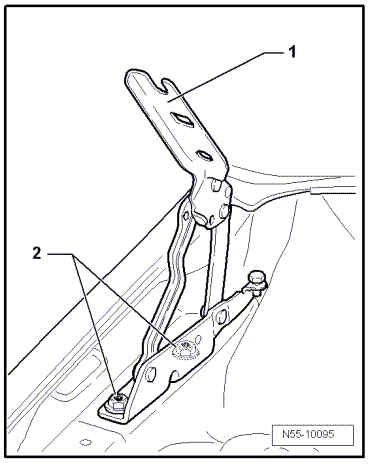

Fig 1: Identifying Screws And Hood Hinge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove screws -2- and remove hood hinge -1-.

Installing

-- Assemble the hood hinge -1-.

Fig 2: Identifying Screws And Hood Hinge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tightening specification for bolts -2- : 22 Nm

-- Hood, installing HOOD
