Removal And Installation: Insulation

Removing

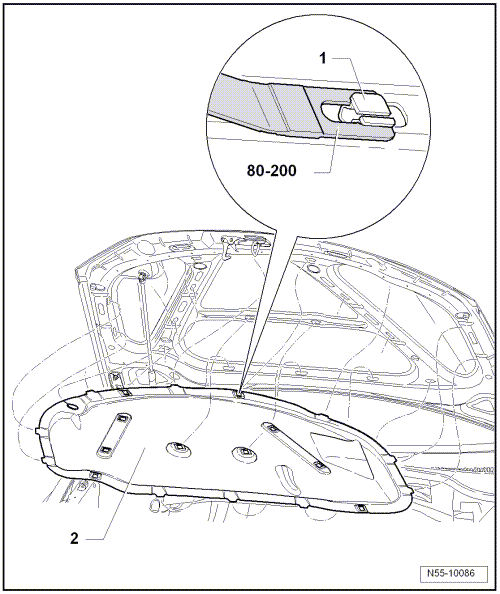

Fig 1: Identifying Pry Lever 80-200 To Remove/Install Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using pry lever 80-200, pry out retaining clips -1- (Qty. 10) from insulation -2-.

-- Pull insulation -2- out of longitudinal holes.

Installing

Fig 2: Identifying Pry Lever 80-200 To Remove/Install Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide insulation -2- under gas-filled strut and insert mounting tabs into longitudinal holes.

-- Engage all retaining clips -1- (Qty. 10) in insulation -2-.

• When installing insulation -2-, make sure that retaining clips -1- are inserted with wide side facing outside.
