Cooling System Assembly Overview, Body Side

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Coolant hose connection diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .

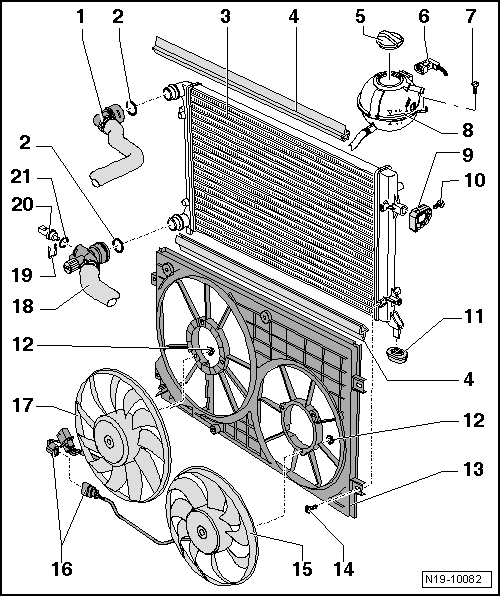

Fig 1: Cooling System On Body Side, Assembly Overview
GWWN19-10082Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Upper Coolant Hose
    • From the coolant thermostat housing.
  2. O-ring
    • Replace if damaged.
  3. Radiator
    • Removing and installing, refer to RADIATOR .
    • After replacing, replace the coolant.
  4. Gasket
  5. Cap
  6. Electrical Connector
  7. Bolt, 3 Nm
  8. Expansion Tank
  9. Bracket
    • For the radiator
  10. Bolt, 7 Nm
  11. Support
  12. Nut, 5 Nm
  13. Fan Shroud
  14. Bolt, 5 Nm
  15. Coolant Fan 2 -V177-
  16. Electrical Connector
  17. Coolant Fan -V7-
    • With the coolant Fan Control (FC) control module.
    • Removing and installing radiator fan shroud with fans. Refer to FAN SHROUD AND FANS .
  18. Lower Coolant Hose
    • To the coolant thermostat housing.
  19. Retaining Clip
  20. Engine Coolant Temperature (ECT) Sensor (on Radiator) -G83-
  21. O-ring
    • Always replace.
