Fan Shroud And Fans

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque wrench (5-50 Nm) VAG 1331

Removing

-- Remove the noise insulation. Refer to Description and Operation .

-- Unclip the coolant hose from the fan shroud.

-- Remove the air duct from air filter. Refer to AIR FILTER ASSEMBLY OVERVIEW .

-- Disconnect the electrical connectors -1- and remove the fan shroud bolts -arrows-.

Fig 1: Disconnecting Electrical Harness Connector And Removing Mounting Bolts Of Intake Air Elbow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fan shroud with fans.

-- Disconnect the electrical connector -1- and lay the wires free.

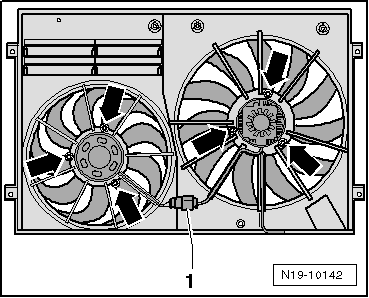

Fig 2: Identifying Harness Connector & Fan Mounting Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fan nuts -arrows- and remove the fans.

Installing

Installation is performed in the reverse order of removal, noting the following:

Tightening Specifications

Component	Nm
Radiator fan to fan shroud	5
Fan shroud to radiator	5
