Headlights, assembly

WARNING: This page is about a different variant/trim than selected.

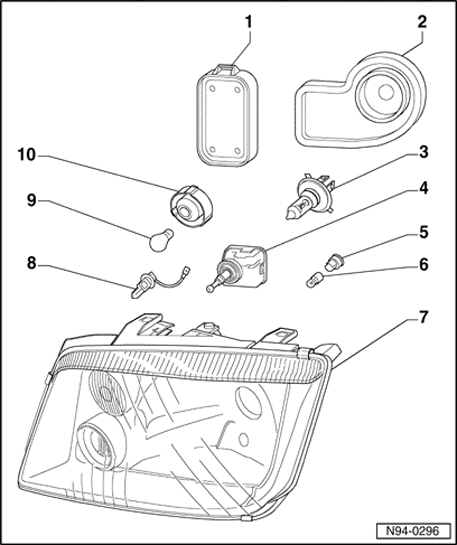

Fig 1: Exploded View Of Headlights Components (Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: After performing any repairs or service that could affect headlight aim, check/adjust aim. Refer to Headlights, adjusting .

1 - Sealing cap

2 - Sealing cap

3 - Headlight bulb (dual filament low/high beam) -L1- / -L2-

Bulb H4, 12 V, 60 W/55 W

4 - Headlight beam adjusting motor

5 - Not applicable to USA/CDN

Fig 2: Exploded View Of Headlights Components (Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

6 - Not applicable to USA/CDN

7 - Headlight housing

Adjusting headlight. Refer to Headlights, adjusting
Removing and installing. Refer to Headlights, removing and installing
Servicing upper housing securing lugs. Refer to Headlight securing lugs, servicing

8 - Fog Light bulb -L22- / L23-

Bulb H3, 12 V, 55 W

9 - Double filament bulb for parking/turn signal light

Bulb 12 V, 21W/5W

10 - Parking/turn signal light bulb holder
