Cooling System Assembly Overview, Body Side

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

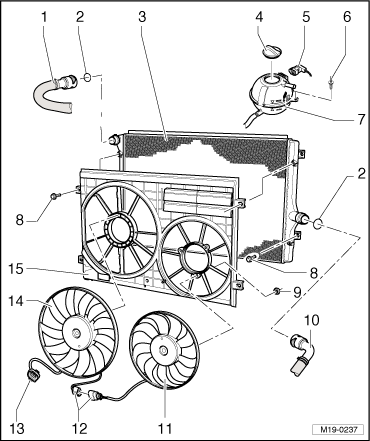

Fig 1: Identifying Cooling System Components (On Body), Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upper Coolant Hose
- To the connection sleeve at the cylinder head.
- Coolant hose connection diagram, refer to COOLANT HOSE CONNECTION DIAGRAM .
O-ring
- Replace if damaged.
Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace the coolant.
Cap
- Check using the cooling system tester VAG 1274 and adapter VAG 1274/9. Refer to Figure.
- Pressure release valve must open at a pressure of 1.4 to 1.6 bar.
Electrical Connector
- For the engine coolant level sensor.
Bolt, 3 Nm
Expansion Tank
- With the Engine Coolant Temperature (ECT) sensor
- Perform a leak test of the cooling system using the cooling system tester VAG 1274 and the adapter VAG 1274/8. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
Bolt, 5 Nm
Nut, 5 Nm
Lower Coolant Hose
Coolant hose connection diagram, refer to COOLANT HOSE CONNECTION DIAGRAM .
Coolant Fan 2 -V177-
- Removing and installing, refer to COOLANT FAN AND COOLANT FAN 2 .
Electrical Connector
Electrical Connector
Coolant Fan -V7-
- Removing and installing, refer to COOLANT FAN AND COOLANT FAN 2 .
- With the coolant Fan Control (FC) control module.
Fan Shroud
