Coolant Fan And Coolant Fan 2

WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose clamps up to 40 mm diameter 3093
Drip tray for VAS 6100 VAS 6208

Removing

-- Remove the noise insulation. Refer to Description and Operation .

-- Disconnect the electrical connector -1- and remove the lower bolts for the fan shroud -arrows-.

Fig 1: Identifying Electrical Harness Connector And Mounting Bolts Of Intake Air Elbow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine cover/upper air filter housing. Refer to ENGINE COVER/UPPER AIR FILTER HOUSING .

-- Remove the bolts -arrows- and remove the intake air guide -2-.

Fig 2: Identifying Bolts And Generator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

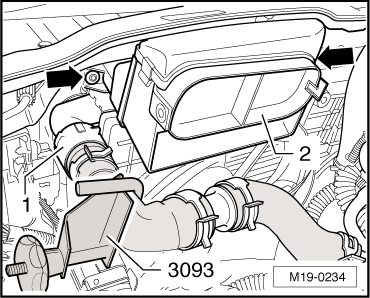

-- Clamp off the coolant hose using the 3093.

-- Place the VAS 6208 below and disconnect the quick release coupling -1-.

NOTE:

If the service position is needed during the following work, the coolant supply line quick release coupling must not be disconnected.

-- Remove the upper fan shroud bolts -arrows-.

Fig 3: Identifying Electrical Harness Connector And Mounting Bolts Of Intake Air Elbow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fan shroud upward.

-- Disconnect the electrical connector -1- and lay the wire free.

Fig 4: Identifying Electrical Harness Connector And Lay Cable Free

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- and remove the fans.

Installing

Installation is performed in reverse order. When doing this note the following:

-- Coolant checking and topping off, if necessary. Refer to DRAINING AND FILLING .

Tightening Specifications

Component	Nm
Coolant fan to fan shroud	5
Intake air guide to fan shroud	5
