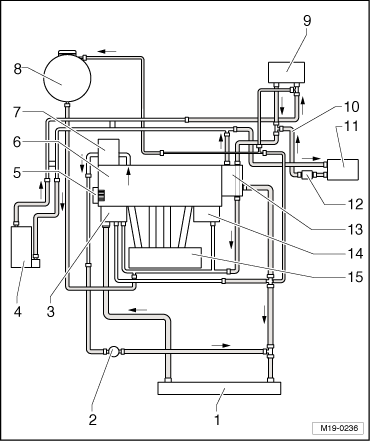

Coolant Hose Connection Diagram
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator
- Removing and installing, refer to RADIATOR .
- Replace the coolant after replacing.
- Coolant Pump -V50-
- Coolant Thermostat Housing
- With thermostat.
- Auxiliary Heater
- Only with optional equipment.
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP .
- Cylinder Head/Cylinder Block
- Replace the coolant after replacing.
- Turbocharger
- Removing and installing, refer to TURBOCHARGER .
- Expansion Tank
- With sealing cap.
- Checking pressure relief valve in cap, refer to Figure.
- Heater Core of Heater
- Replace the coolant after replacing.
- Hose
- Only for the DSG transmission.
- Transmission Oil Cooler
- Replace the coolant after replacing.
- Only for the DSG transmission.
- Bypass Thermostat
- Checking, refer to BYPASS THERMOSTAT ASSEMBLY OVERVIEW .
- Only on the DSG transmission.
- Coolant Connection
- Engine Oil Cooler
- Intake Manifold
- Removing and installing, refer to INTAKE MANIFOLD .
