Valve body, removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not run the engine or tow the vehicle with oil pan removed or when there is no ATF in the transmission.

NOTE:

The valve body can also be removed when the transmission is installed.
On vehicles with 6-cylinder engine, remove starter.
After re-installing the oil pan, fill with ATF. See ATF LEVEL CHECKING AND TOPPING UP .
Always replace a valve body that is fouled or malfunctioning.

NOTE: The following list refers to Fig 1.

- Oil pan
- Bolt
- Tightening torque: 12 N.m (9 ft lb)
- Gasket
- Always replace
- Press spacer bushings into gasket
- Spacer bushing
- Press into gasket
- Bolt
- Tightening torque: 8 N.m (71 in lb)
- ATF screen
- Press into gasket
- Installing. See Installing ATF screen .
- Gasket
- Always replace
- Press into ATF screen
- Bolt
- Tightening torque: 5 N.m (44 in lb)
- Valve body
- Marking. See Identification of valve body .
- Installing (version with wiring harness). See Installing valve body with wiring harness .
- Installing (version with conductor strip). See Installing valve body with conductor strip .
- Removing and installing conductor strip only. See VALVE BODY CONDUCTOR STRIP WITH TRANSMISSION FLUID TEMPERATURE SENSOR, REMOVING AND INSTALLING .
- Bolt
- Tightening torque: 10 N.m (7 ft lb)
- Cable gland
- Insert with O-ring
- O-ring
- Always replace
- Cable connector
- Attach to starter
- Clip
- Clip
- Nut
- Tightening torque: 10 N.m (7 ft lb)
- Sealing plug
- Take out before removing and installing free wheel
- Insert so that plug is located in groove on housing. See Installing sealing plug .
- Place O-rings onto sealing plug
- O-ring
- Always replace
- O-ring
- Always replace
- Operating rod for manual selector valve
- Adjusting. See Adjusting operating rod for manual selector valve .
- Install with stepped side facing manual selector valve

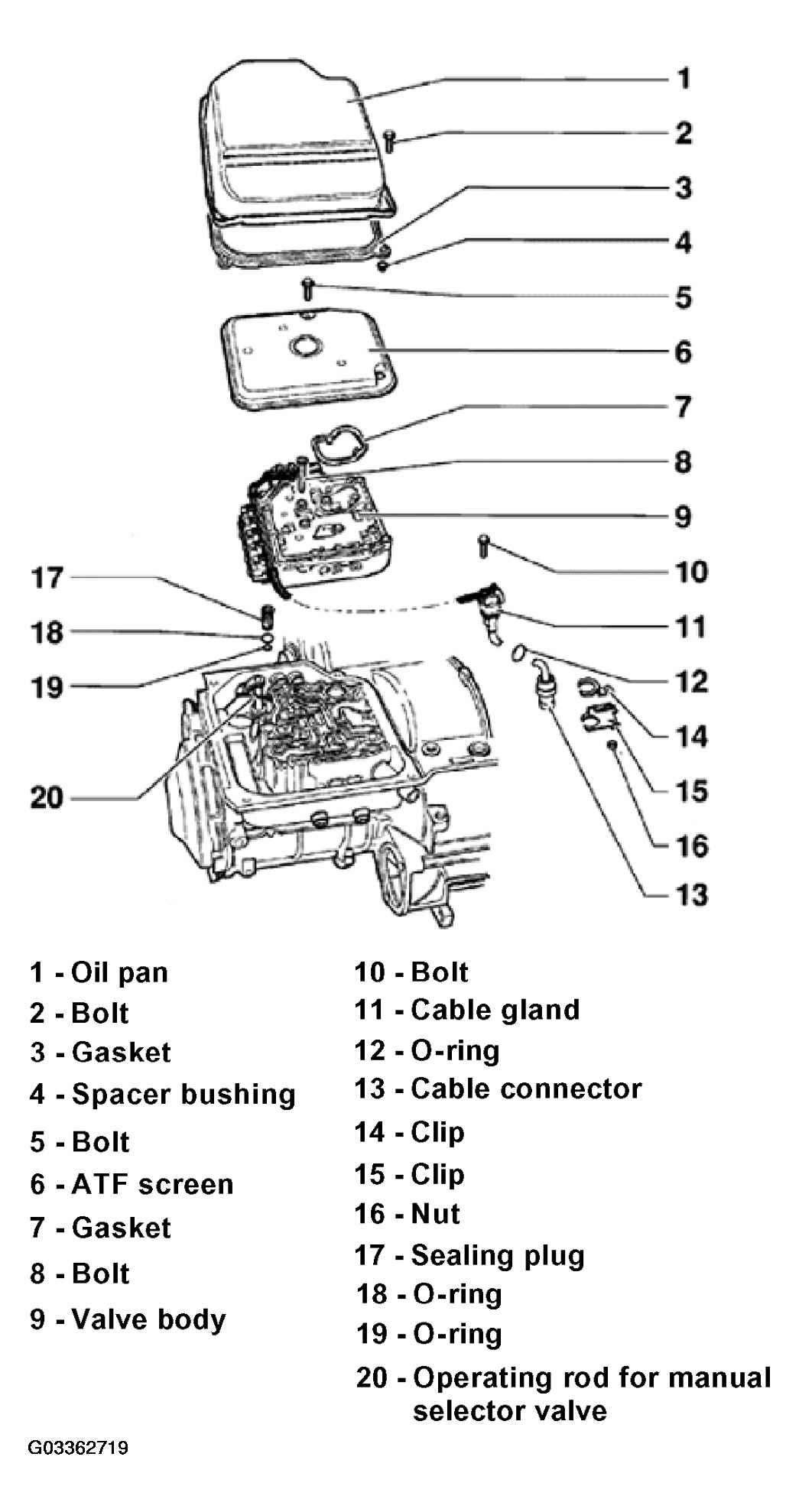

Fig 1: Removing And Installing Valve Body

Courtesy of VOLKSWAGEN OF AMERICA, INC.
