Installing sealing plug

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sealing plug from the housing before removing and installing the free wheel, otherwise the sealing plug and the O-ring will be damaged.

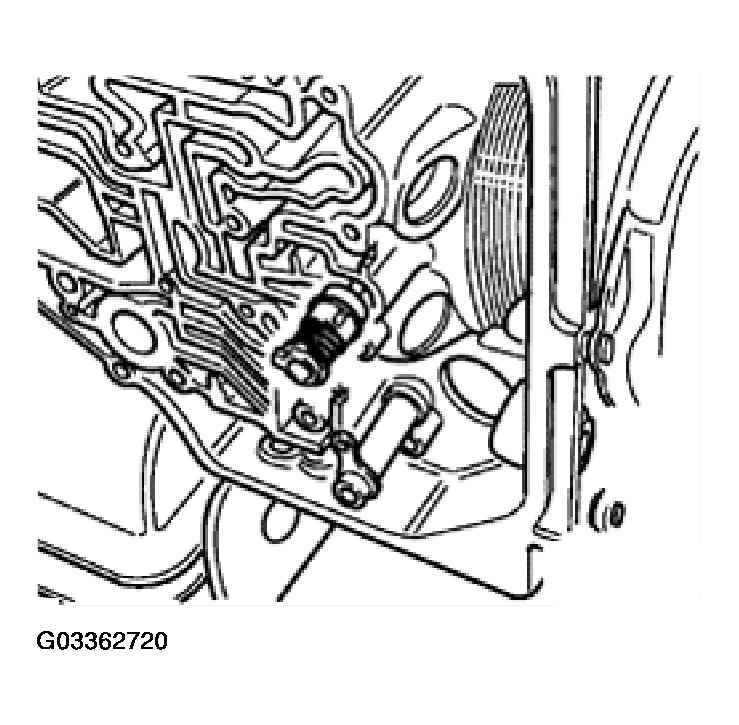

Fig 1: Installing Sealing Plug
G03362720Courtesy of VOLKSWAGEN OF AMERICA, INC.
