Adjusting operating rod for manual selector valve
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
- Move selector shaft to position "P."

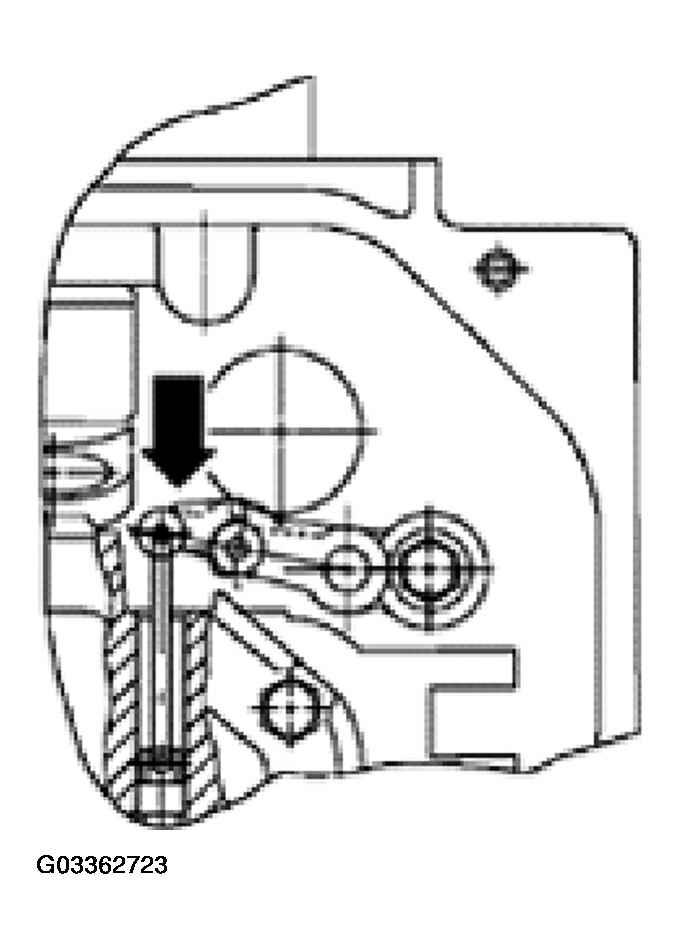

- - Push operating rod with manual selector valve into valve body as far as stop (in direction of arrow) and tighten bolt.
- Tightening torque: 4 N.m (35 in lb)
NOTE:
- The manual selector valve must always be resting against the stop. Counter-hold in direction of arrow when tightening bolt.
- Always replace manual selector valve bolt.
