Identification of valve body

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Code letters are stamped on a metal tab. The metal tab must remain on the valve body.

Vehicle/transmission applications. See Code letters, model/engine applications, ratios, equipment .

NOTE: If the valve body does not have an identification tab, it can remain installed in the transmission. When replacing the valve body, the correct application must be determined. See Code letters, model/engine applications, ratios, equipment .

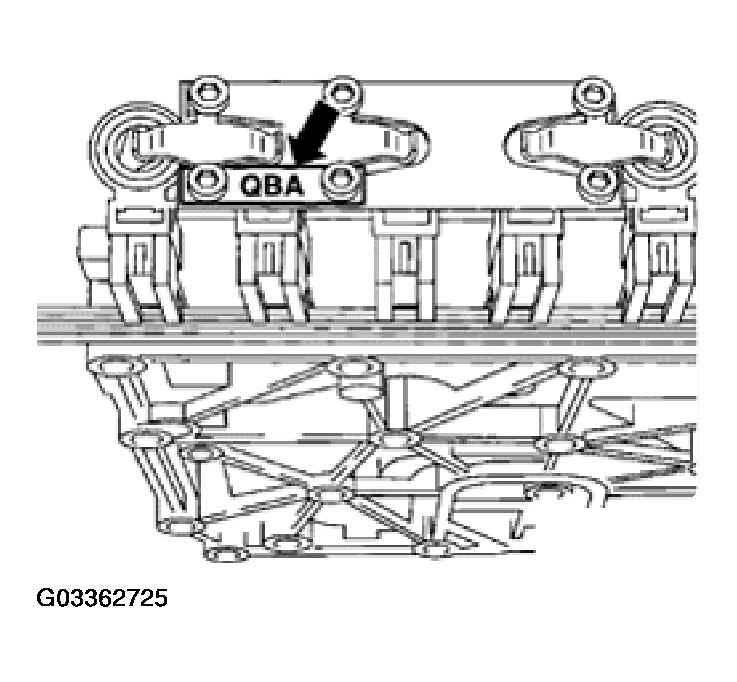

Fig 1: Locating Valve Body Code Letters
G03362725Courtesy of VOLKSWAGEN OF AMERICA, INC.
