Shift mechanism, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

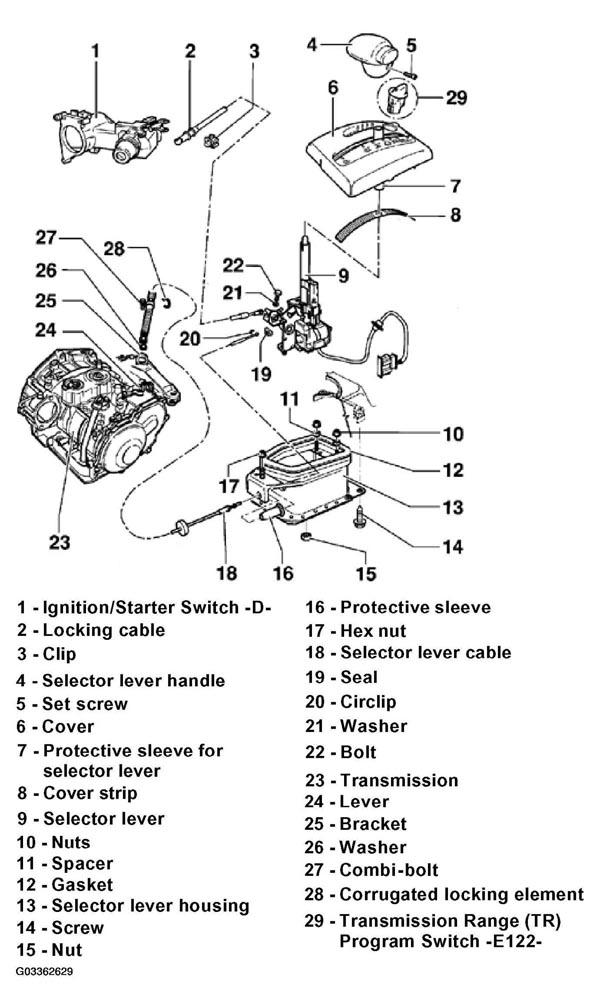

The following list refers to Fig 1.
- - Ignition/Starter Switch -D-
- - Locking cable
- Must not be kinked
- Adjusting. See LOCKING CABLE, ADJUSTING .
- Removing and installing. See LOCKING CABLE, REMOVING AND INSTALLING .
- - Clip
- For securing locking cable
- Always replace
- - Selector lever handle
- - Set screw
- Tightening torque: 1.5 N.m (13 in lb)
- - Cover
- With selector indicator
- With hole for Transmission Range (TR) Program Switch -29- (-E122-), on vehicles so equipped
- - Protective sleeve for selector lever
- - Cover strip
- Insert in cover - 6 -
- - Selector lever
- Disassembling and assembling. See SELECTOR LEVER, DISASSEMBLING AND ASSEMBLING .
- To remove selector lever, lower protective plate is removed and front protective plate is removed and pushed forward
- When installing selector lever, insert locking cable anchor in notch of selector lever housing
- Securing wiring harness to selector lever housing (Shiftlock Solenoid with single wiring harness). See Mounting wiring harness to selector lever housing .
- Securing wiring harness for Shiftlock Solenoid and indicator lighting (wiring harness not an integral part of solenoid). See Mounting wiring harness for Shiftlock Solenoid and indicator lighting .
- - Nuts
- To secure center console
- - Spacer
- - Gasket
- - Selector lever housing
- Need not be removed to replace selector lever cable or individual parts of shift mechanism
- Mounting. See Securing selector lever housing .
- Removing. See Removing and installing selector lever housing .
- - Screw
- Tightening torque: 25 N.m (18 ft lb)
- Qty. 2/4. See Securing selector lever housing .
- - Nut
- Always replace
- Tightening torque: 15 N.m (11 ft lb)
- Qty. 3
- - Protective sleeve
- Insert into selector lever housing before attaching selector lever cable. See Securing selector lever housing .
- - Hex nut
- With shoulder
- Tightening torque: 25 N.m (18 ft lb)
- Installing. See Securing selector lever housing .
- - Selector lever cable
- To remove selector lever, lower protective plate is removed, exhaust system is separated in front of Three Way Catalytic Converter (TWC) and front protective plate removed (On vehicles with 6-cyl. engine: remove TWC)
- Do not bend or kink
- Lightly grease cable eye and cable ends before installing
- Tighten selector lever cable on cable anchor/selector lever housing to 20 N.m (15 ft lb)
- Check guide tube for tight fit
- Check protective sleeve between console and lever/gearshift shaft for proper seating and secure selector lever cable with corrugated locking element -28 -
- Attaching. See Attaching selector lever cable to selector lever .
- Adjusting. See Selector lever cable, checking and adjusting .
- - Seal
- Bonded to cable anchor
- Replace if damaged
- - Circlip
- Install after installing selector lever cable. See Attaching selector lever cable to selector lever .
- - Washer
- - Bolt
- Loosen to adjust locking cable. See LOCKING CABLE, ADJUSTING .
- Tightening torque: 6 N.m (53 in. lb)
- - Transmission
- - Lever
- For selector shaft
- - Bracket
- With cable anchor for selector lever cable
- - Washer
- - Combi-bolt
- Tightening torque: 25 N.m (18 ft lb)
- - Corrugated locking element
- For selector lever cable
- Always replace
- - Transmission Range (TR) Program Switch -E122-
- Only for vehicles with TR Program Switch -E122-. See TRANSMISSIONS FOR VEHICLES WITH TRANSMISSION RANGE (TR) PROGRAM SWITCH -E122- .
- Discontinued from 01.93 and up, Transmissions for vehicles with electronic program switch in Transmission Control Module (TCM). See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .
- Can be checked electrically. See TRANSMISSION ELECTRICAL TESTING . And with VAG 1551 by reading measured value block. See Reading measured value block .
