Removing and installing selector lever housing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear center console.
- Remove hex nut with shoulder.
- Remove lower protective plate.
- Disconnect Oxygen Sensor connector, separate exhaust system in front of Three Way Catalytic Converter (TWC).NOTE: On vehicles with 6-cyl. engine, remove the Three Way Catalytic Converter (TWC) completely.

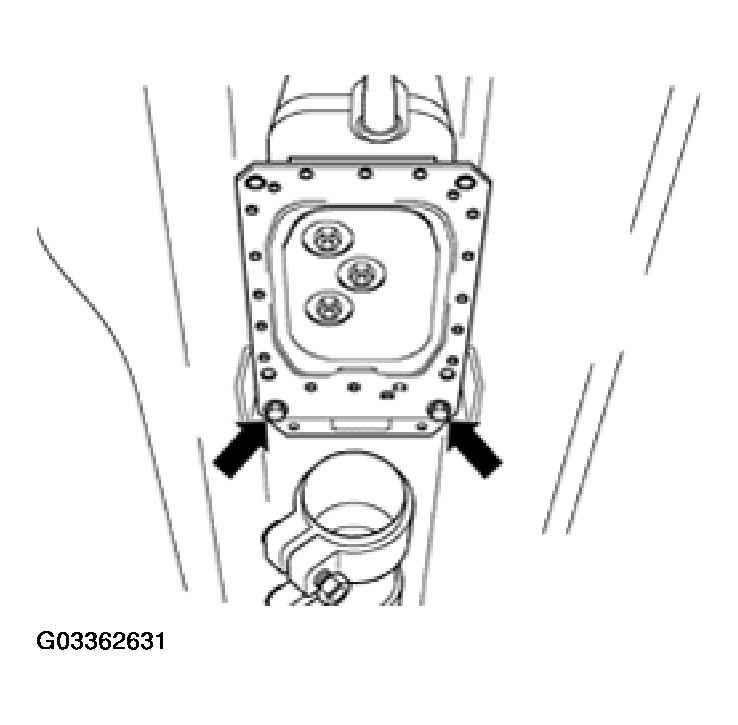

- Remove front protective plate and rear lower bolts (arrows).
