Locking cable, adjusting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Locking cable must only be adjusted in its installation position.

Shift selector lever into "1" position.
Turn ignition key to right ("START" position) and release.
Adjust clearance -a- between lever -1- and locking pin -2- by sliding locking cable casing.

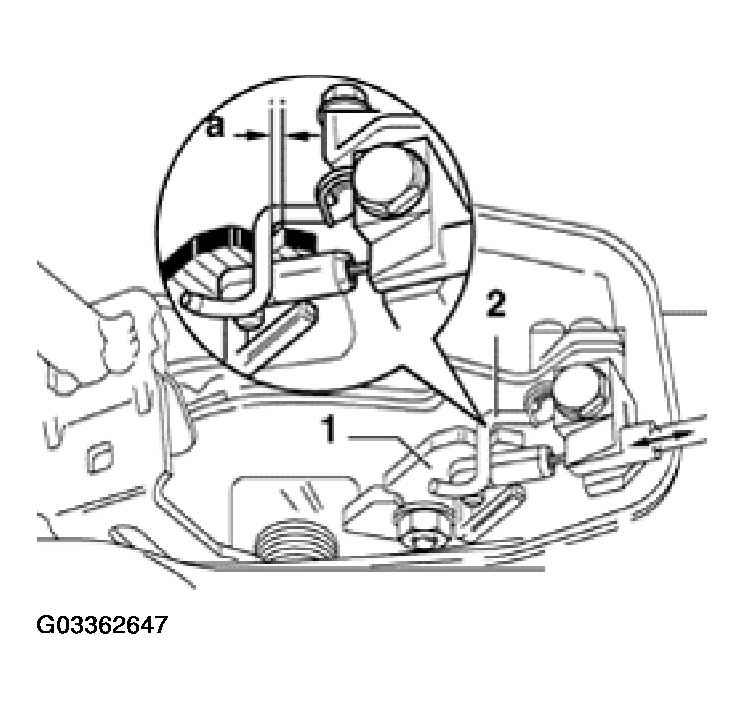

Fig 1: Adjusting Clearance Between Lever And Locking Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Dimension -a- 0.7 mm (0.028 in.)
Tighten locking cable anchorage screw in this position.
- Tightening torque: 6 N.m (53 in lb).
Shift selector lever into "P" position and turn ignition key to end ("OFF") position.
Remove ignition key.
- It must only be possible to remove ignition key with selector lever in "P" position.
- It must not be possible for selector lever to be shifted out of "P" position.
