Securing selector lever housing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Before attaching selector lever cable, insert boot (arrow).
NOTE: When securing the selector lever housing with 4 bolts, the nut -B- with collar is not used.

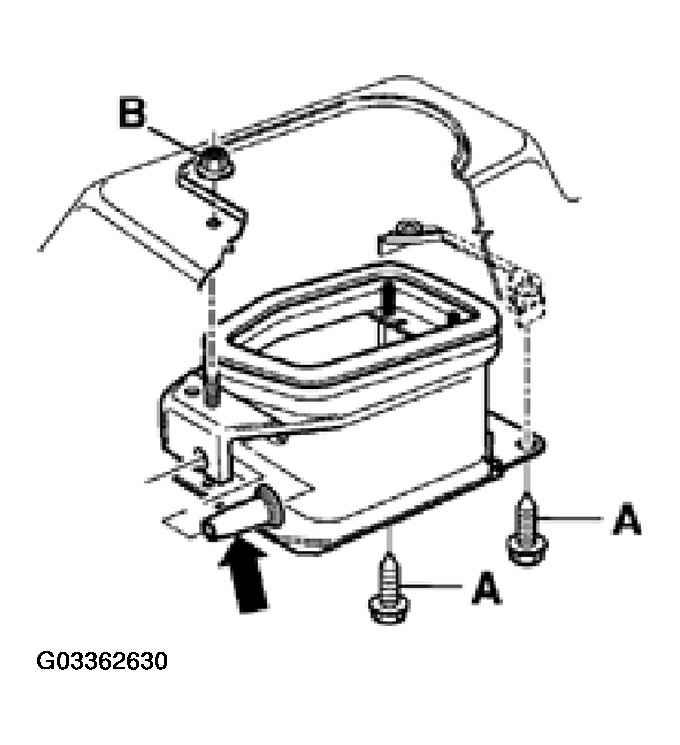

Fig 1: Securing Selector Lever Housing

Courtesy of VOLKSWAGEN OF AMERICA, INC.
