Engine, disassembling and assembling: Notes

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If large amounts of metal shavings or small metal particles are found in the engine oil, caused by wear of crankshaft and connecting rod bearings, thoroughly clean the oil passages to remove contaminants and help prevent later damage.
  • The oil cooler cannot be sufficiently cleaned, and must be replaced.

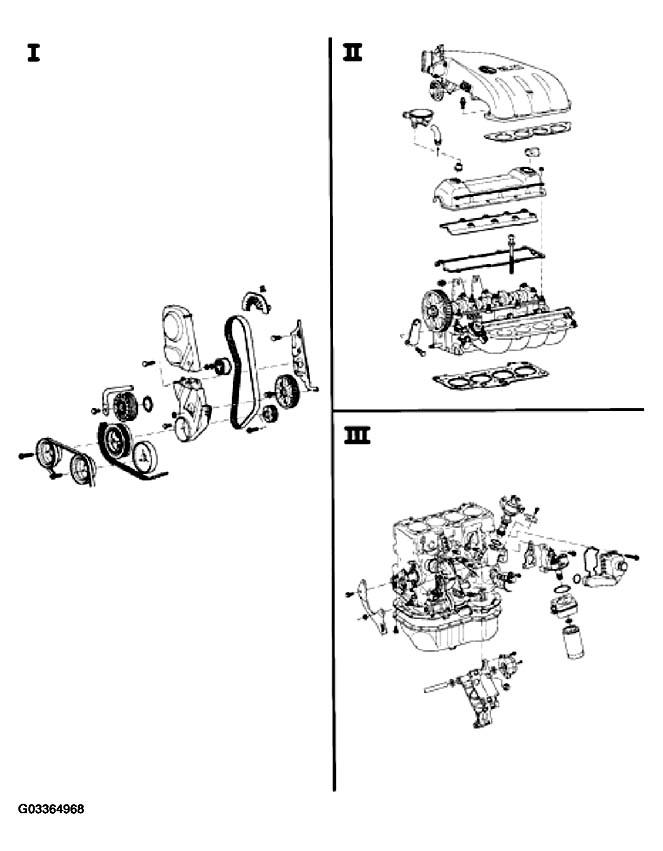

Fig 1: Exploded View Of Engine Assembly Components
G03364968Courtesy of VOLKSWAGEN OF AMERICA, INC.
