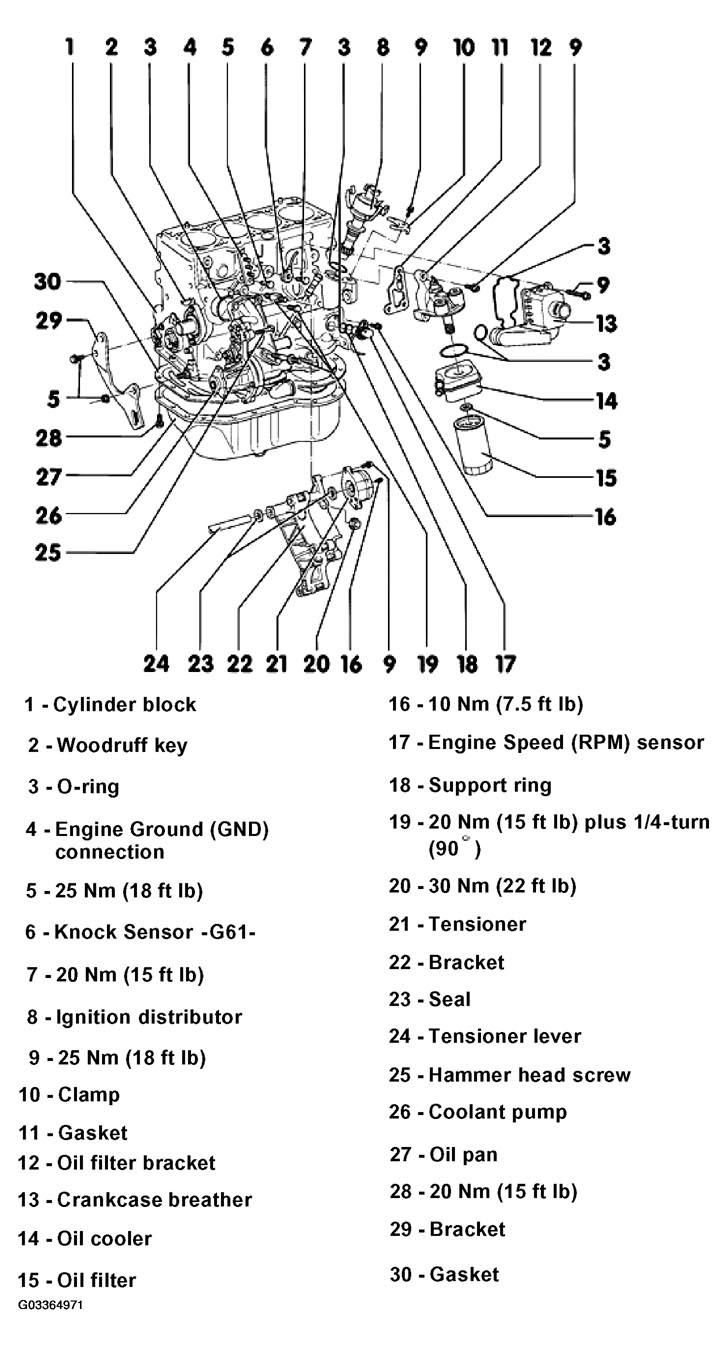

The following list pertains to Fig 1.
- Cylinder block
- Sealing flange and pressure plate/driveplate, removing and installing, see DRIVEPLATE, REMOVING AND INSTALLING
- Crankshaft, removing and installing, see CRANKSHAFT, REMOVING AND INSTALLING
- Piston and connecting rod, disassembling and assembling, see PISTON AND CONNECTING ROD, DISASSEMBLING AND ASSEMBLING
- Woodruff key
- Check for tight fit
- O-ring
- Always replace
- Engine Ground (GND) connection
- 25 Nm (18 ft lb)
- Knock Sensor -G61-
- Checking
For model years 1993-1995, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
For model years 1996-1999, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- 20 Nm (15 ft lb)
- Incorrect tightening torque can influence knock sensor function
- Ignition distributor
- Installing
For 1993-95, see IGNITION DISTRIBUTOR, REMOVING/INSTALLING .
For 1996-99, see DISTRIBUTOR, REMOVING AND INSTALLING .
- 25 Nm (18 ft lb)
- Clamp
- Gasket
- Always replace
- Oil filter bracket
- Crankcase breather
- Oil cooler
- Coat flange area with AMV 188 100 02 outside sealing ring
- Ensure clearance to surrounding components
- Replace if contaminated, see Caution in Engine, disassembling and assembling
- Oil filter
- Loosen with strap wrench
- Tighten by hand
- Follow installation instructions on oil filter
- 10 Nm (7.5 ft lb)
- Engine Speed (RPM) sensor
- Checking
For model years 1993 - 1995, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
For model years 1996 - 1999, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- Support ring
- 20 Nm (15 ft lb) plus 1/4-turn (90°)
- Always replace
- 30 Nm (22 ft lb)
- Tensioner
- Bracket
- Seal
- Always replace
- Tensioner lever
- Hammer head screw
- Coolant pump
- Oil pan
- 20 Nm (15 ft lb)
- Loosen or tighten bolts on flywheel side using tool 3185
- Bracket
- For power steering pump
- Gasket
- Always replace
Gasket with baffle plate (where applicable):
- Replace if damaged
- To remove, remove oil pump cover
- Always replace
