Valve body
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not run engine or tow vehicle with oil pan removed or when there is no ATF in transmission.
NOTE:
- The valve body or conductor strip can also be removed with transmission installed.
- The conductor strip can be removed individually. On vehicles with 6-cyl. engine, first remove starter motor to remove conductor strip.
- After re-installing oil pan, fill with ATF: see ATF LEVEL, CHECKING AND TOPPING UP .
- Always replace a valve body which is fouled or inoperative.

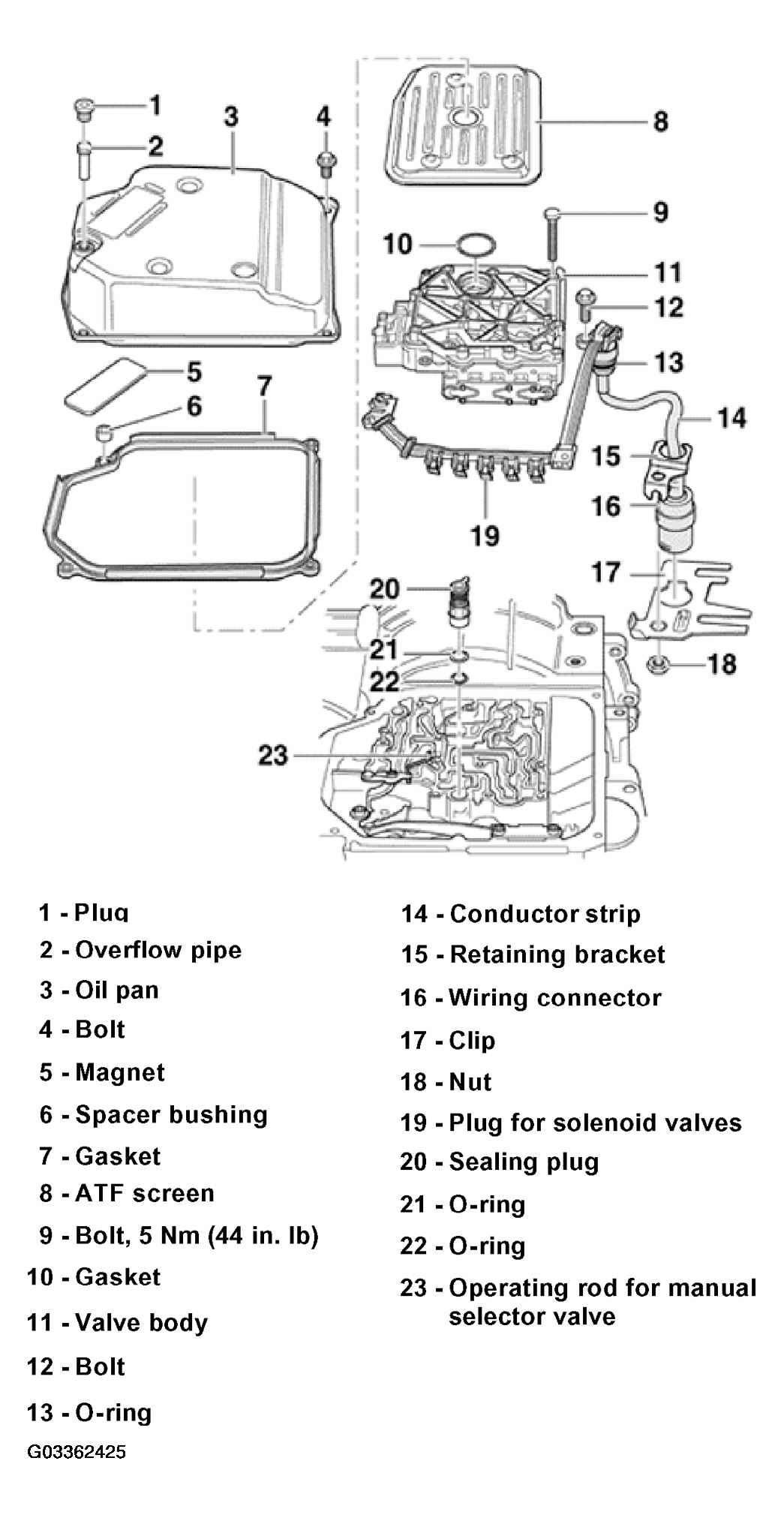

The following list pertains to Fig 1.
- Plug
- Always replace seal, see Plug seal, replacing
- Checking ATF level and topping-up, see ATF LEVEL, CHECKING AND TOPPING UP
- Overflow pipe
- Remove to drain ATF, see ATF, draining
- Thread in to stop
- Checking ATF level and topping-up, see ATF LEVEL, CHECKING AND TOPPING UP
- Oil pan
- Bolt
- 12 N.m (9 ft lb)
- Magnet
- Install in oil pan recess
- Spacer bushing
- Press into gasket
- Gasket
- Always replace
- Press spacer bushings into gasket
- ATF screen
- Installing, see ATF screen, installing
- Bolt, 5 N.m (44 in. lb)
- 5 N.m (44 in lb)
- Gasket
- Always replace
- Install in valve body
- Valve body
- Removing, see Valve body/unhooking operating rod, removing
- Installing, see Valve body, installing
- Marking, see Valve body, identification
- Installing gasket -10-
- Bolt
- 10 N.m (7 ft lb)
- O-ring
- For wiring guide
- Always replace
- Conductor strip
- With wiring guide and connector
- Can be removed and installed with transmission installed
- Retaining bracket
- For conductor strip connector, installing, see Securing clip with bolt for conductor strip connector, installing
- Wiring connector
- Attach to transmission housing
- Clip
- Insert lug of wiring connector in clip recess
- Securing clip with bolt, see Securing clip with bolt for conductor strip connector, installing
- Nut
- 10 N.m (7 ft lb)
- Securing clip with bolt, see Securing clip with bolt for conductor strip connector, installing
- Plug for solenoid valves
- Remove solenoid valves with 3373, see Conductor strip, removing
- Sealing plug
- Remove before removing and installing free wheel
- Install plug so lug is located in groove on housing, see Sealing plug, installing
- Place O-rings on sealing plug
- O-ring
- Always replace
- O-ring
- Always replace
- Operating rod for manual selector valve
- Unhooking, see Valve body/unhooking operating rod, removing
- Install with stepped side facing manual selector valve, see Operating rod, installing (unhooking onto) manual selector valve
- Adjusting, see Operating rod, manual selector valve, adjusting
