Plug seal, replacing
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

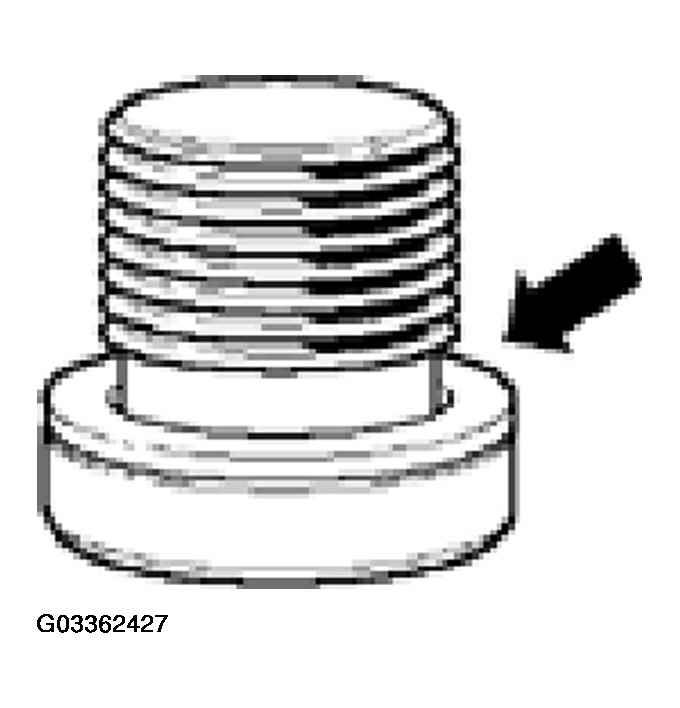

- Cut open seal -arrow- with side cutters.
- After repairs, install new seal on plug and screw in hand - tight when filling with ATF.
- Fill with 3 liters (3.16 qt) ATF, then check ATF level and top-up, see ATF LEVEL, CHECKING AND TOPPING UP .
