Valve body/unhooking operating rod, removing
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

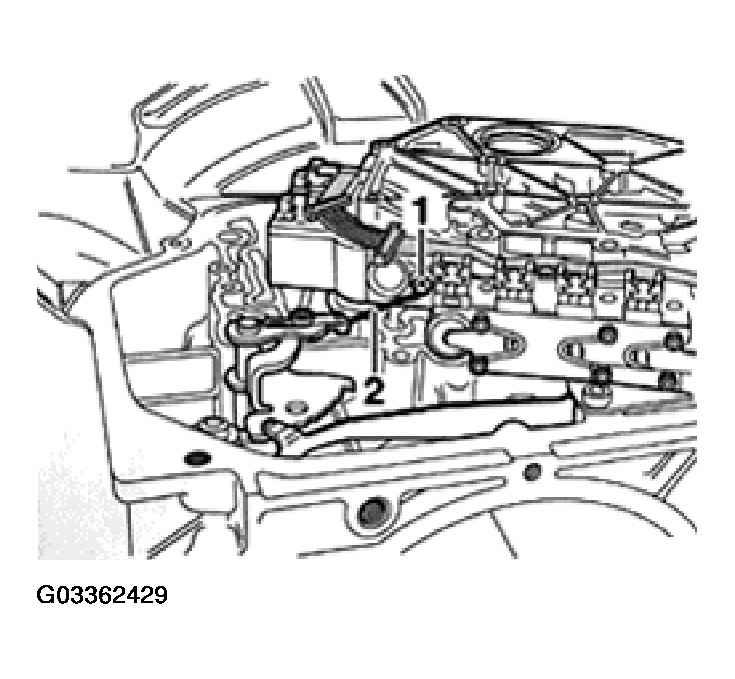

When removing valve body, manual selector valve -1- remains in valve body.
- Shift selector lever/shaft into "1".
- Pull manual selector valve out until it is just possible to unhook operating rod -2-.
- Secure manual selector valve so it cannot fall out.
