Operating rod, manual selector valve, adjusting
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Move selector shaft to "P".

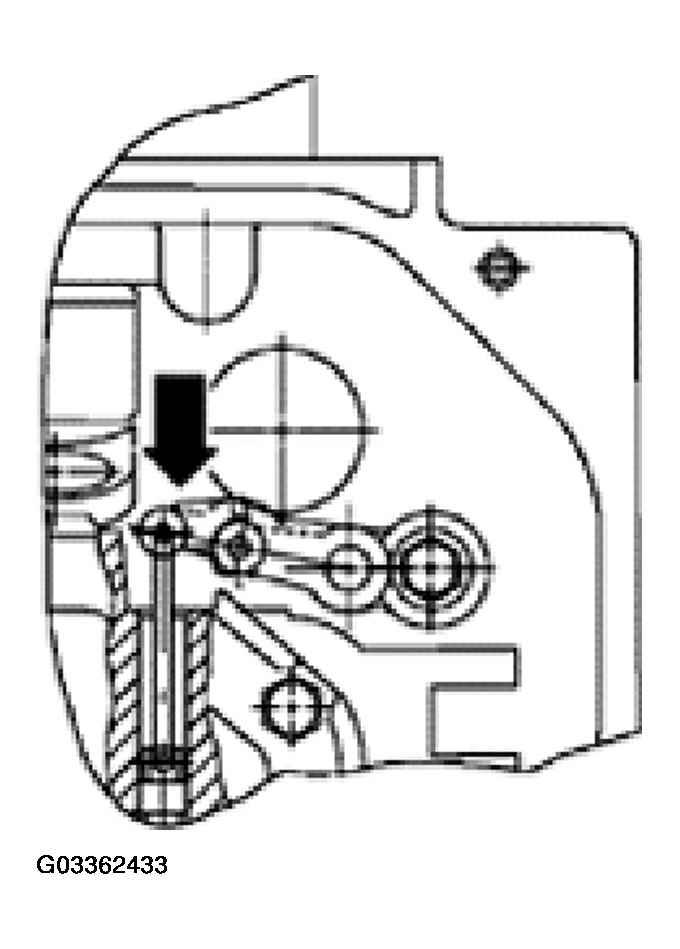

- Push operating rod with manual selector valve in valve body to stop (direction of arrow) and tighten bolt to 4 N.m (35 in. lb).NOTE:
- Manual selector valve must always be resting against stop. Counter-hold in direction of arrow when tightening bolt.
- Always replace bolt and manual selector valve retaining clip.
