Heater box/evaporator housing, assembly: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

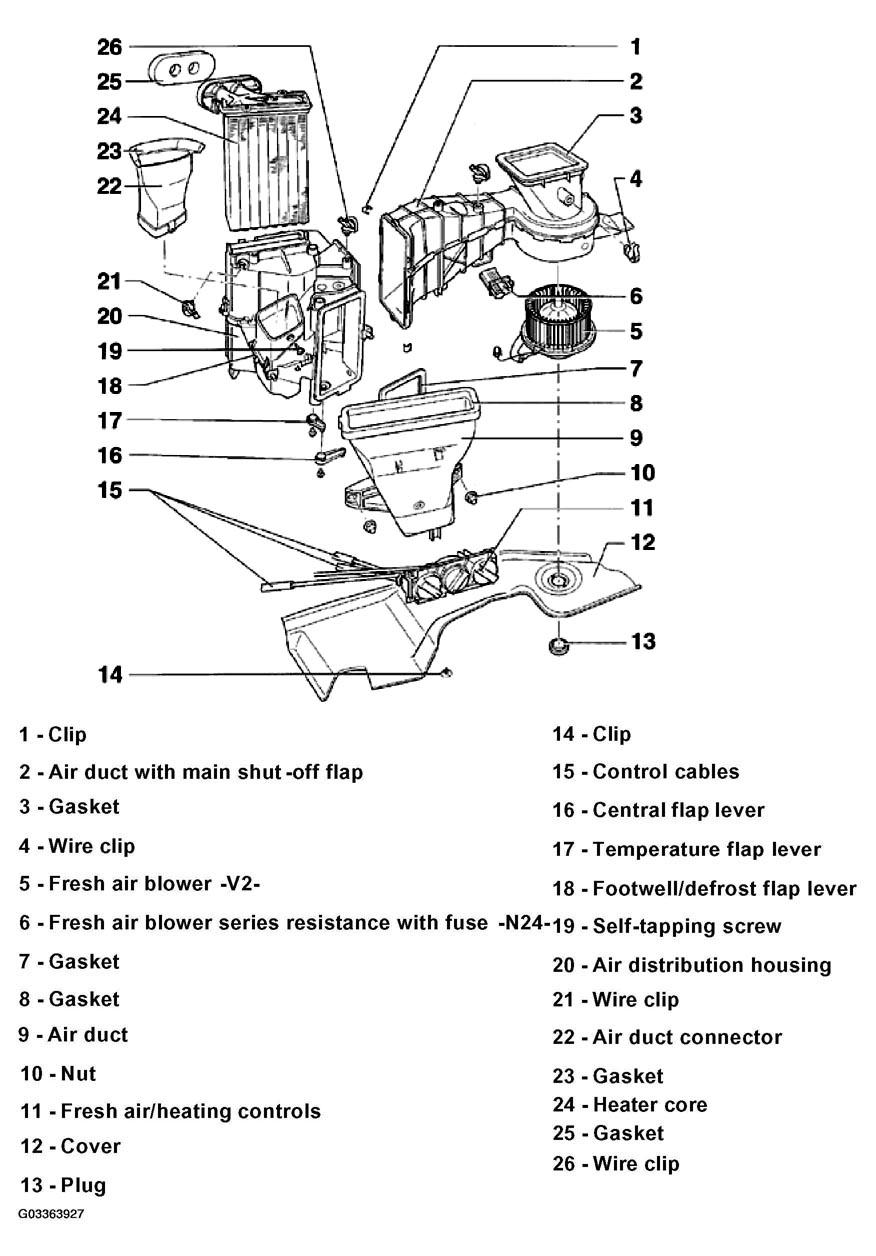

The following list pertains to Fig 1.
- Clip
- Air duct with main shut-off flap
- Do not disassemble further
- Gasket
- Wire clip
- Fresh air blower -V2-
- Fresh air blower series resistance with fuse -N24-
- Gasket
- Gasket
- Always replace
- Air duct
- Nut
- Fresh air/heating controls
- Assembly, refer to FRESH AIR/HEATING CONTROLS, ASSEMBLY
- Cover
- Plug
- Clip
- Control cables
- When replacing, first remove cover -12-
Installing and adjusting:
- Without A/C, refer to FRESH AIR/HEATING CONTROL CABLES, INSTALLING AND ADJUSTING (WITHOUT A/C)
- With A/C, refer to CONTROL CABLES, INSTALLING AND ADJUSTING (WITH A/C)
- Central flap lever
- Temperature flap lever
- Footwell/defrost flap lever
- Self-tapping screw
- Air distribution housing
- Do not disassemble further
- Wire clip
- Air duct connector
- Gasket
- Always replace
- Heater core
To install:
- Install seals around perimeter of heater core so there are no gaps, and glue in place.
- If heater core does not lock into place during installation, fasten to heater box using screws through tabs on top of heater core.
- Vacuum hose adaptor, installing, refer to Installing vacuum hose adaptor
- Gasket
- Always replace
- Wire clip
