Fresh air/heating controls, assembly
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before working on the electrical system:
- Determine the correct coding for the anti-theft radio.
- Disconnect the battery Ground (GND) strap.

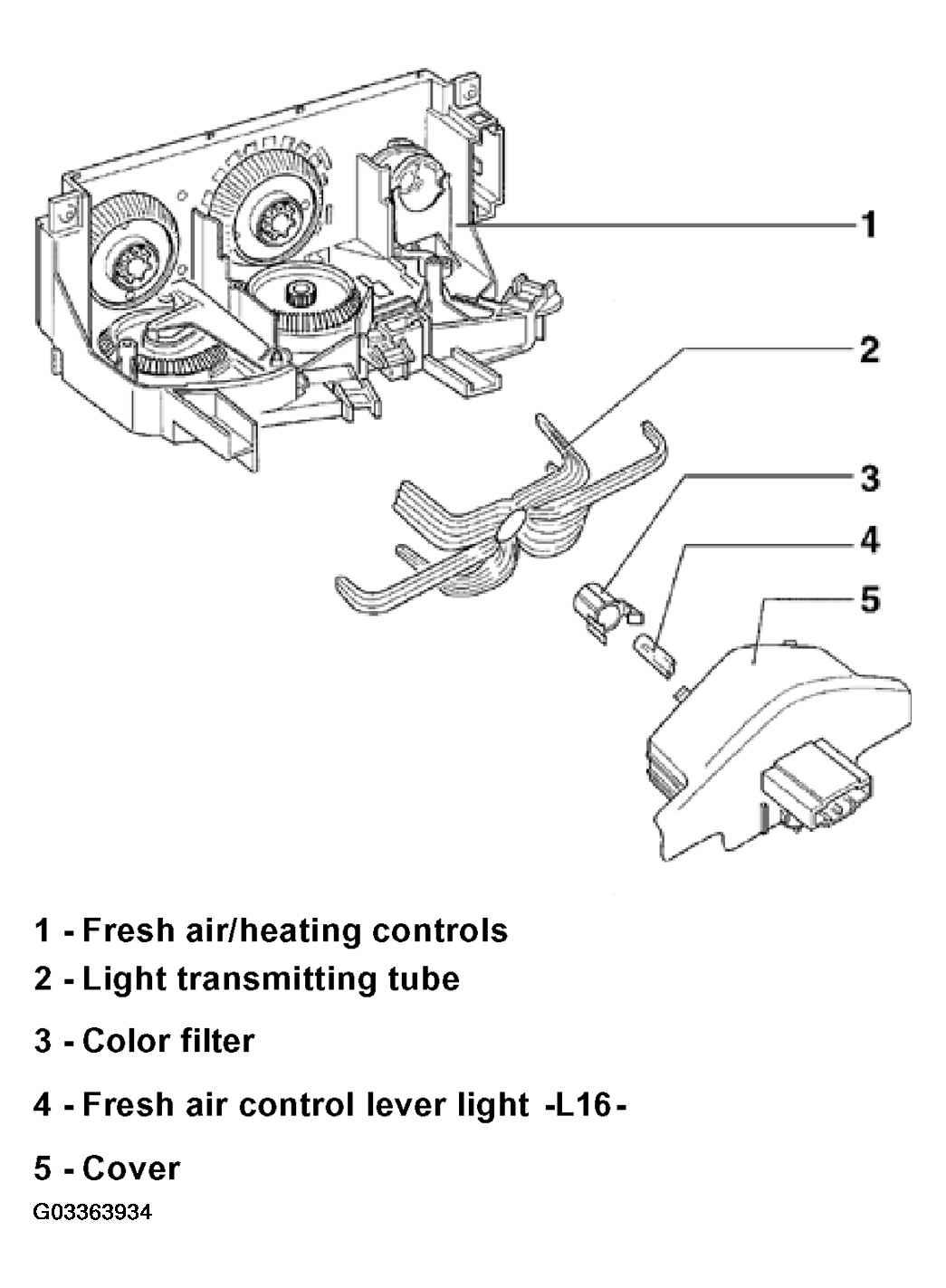

The following list pertains to Fig 1.
- Fresh air/heating controls
- Includes fresh air blower switch -E9-
- Light transmitting tube
- Color filter
- Fresh air control lever light -L16-
- Cover
