Control cables, installing and adjusting (with A/C)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Install cable ends identified with colored bands to control head levers.
- Install cables to control head before installing on evaporator/heater box levers.
- After connecting control cables to control head levers, fasten cables to control head using clips.
- Adjust cables with control head installed.
- When control knobs are turned stop to stop, flaps must move and audibly contact stops.

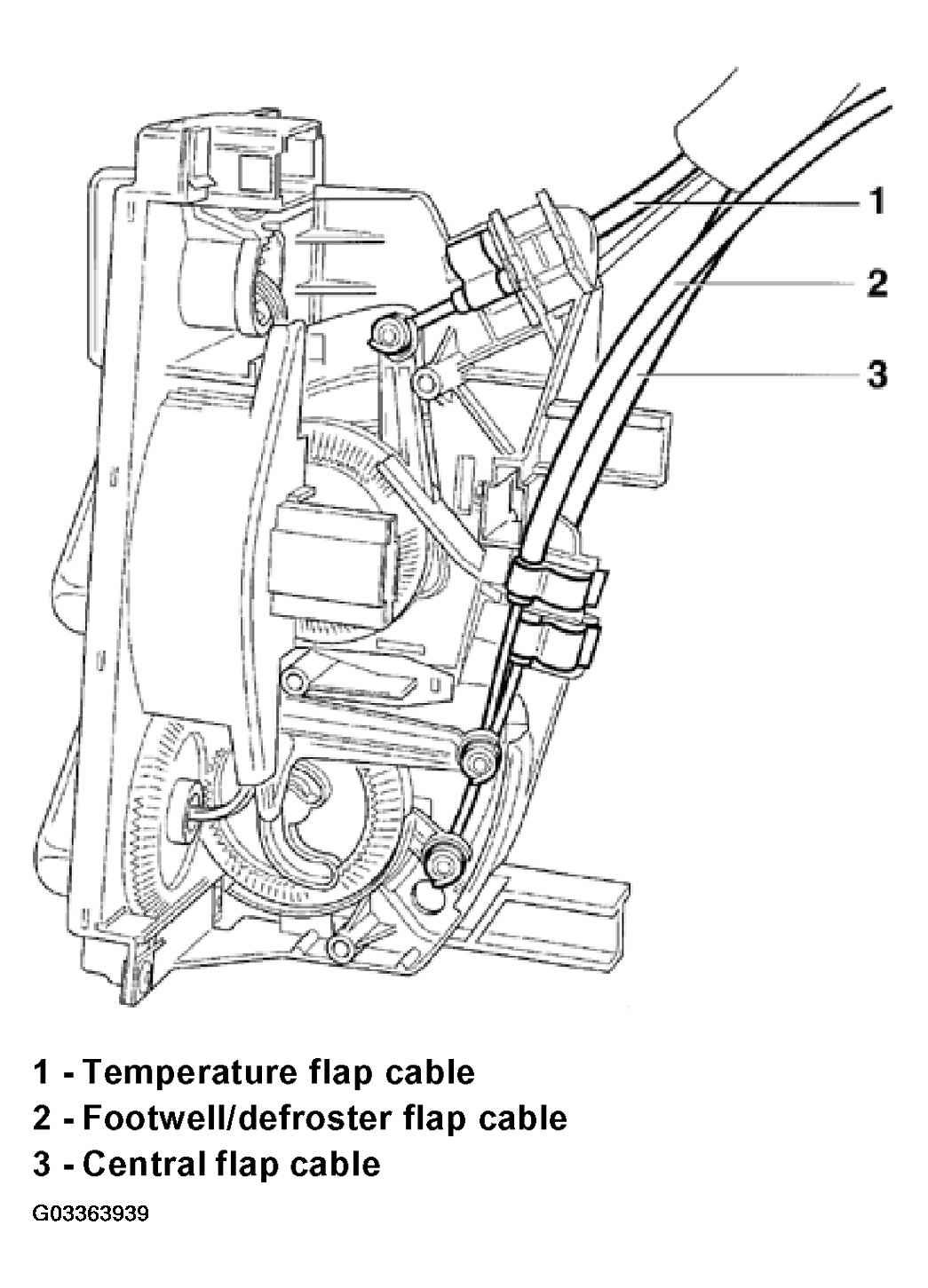

The following list pertains to Fig 1.
- Temperature flap cable
- Connects temperature control knob to temperature flap
- Blue sleeve, 585 mm (23.0 in.) long
- Adjusting, refer to Adjusting temperature flap cable
- Footwell/defroster flap cable
- Connects air flow distribution knob (upper control lever) to footwell/defroster flap
- Black sleeve, 488 mm (19.2 in.) long
- Adjusting, refer to Adjusting footwell/defroster flap cable
- Central flap cable
- Connects air flow distribution knob (lower control lever) to central flap
- Black sleeve, 639 mm (25.2 in.) long
- Adjusting, refer to Adjusting central flap cable
