Removal [07/2020 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE DECK BOARD ASSEMBLY
    1. Slightly lift the deck board assembly (1) on the right side with a suitable tool.

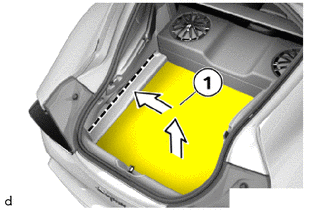

      GTY914618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Slide the left edge of the deck board assembly (1) into the recess in the direction of the arrow of the deck board assembly.
    3. Remove the deck board assembly (1) in the direction of the arrow.

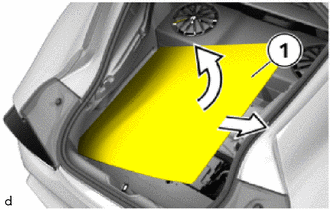

      GTY943239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  5. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  6. SEPARATE TRANSVERSE PIPE TRIM

    Refer to PROCEDURE - Step 4

  7. REMOVE SEAT BELT HOLE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  8. REMOVE SEAT BELT HOLE COVER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE TRANSVERSE PIPE

    Refer to PROCEDURE - Step 7

  10. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  11. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE QUARTER TRIM UPPER PANEL LH

    Refer to PROCEDURE - Step 10

  13. REMOVE QUARTER TRIM UPPER PANEL RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE TRIANGLE REFLECTOR SET
    1. Open the screw caps (1) and the lid of the triangle reflector set (2).

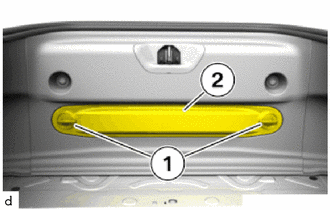

      GTY895854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Perform this procedure only when opening the lid is necessary.

    2. Open the hook and loop fastener (1) to remove the triangle reflector set (2).

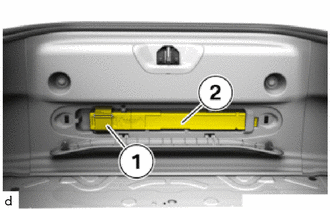

      GTY895852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DECK TRIM REAR COVER
    1. Detach the claws (2) to remove the back door striker cover (1).

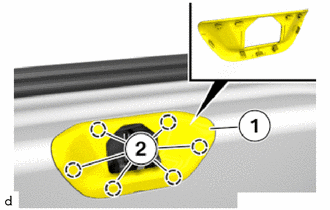

      GTY905335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T30 screws (1).

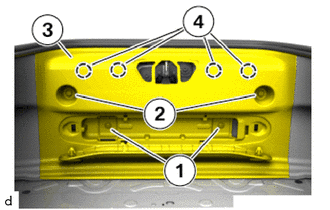

      GTY895851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clips (2).
    4. Remove the deck trim rear cover (3) out under the back door weatherstrip.
    5. Detach the deck trim rear cover (3) upward from the clips (4).
  16. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. REMOVE ROPE HOOK (w/ Courtesy Light)

    HINT:

    Use the same procedures for the opposite side.

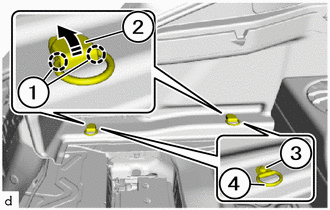

    1. Detach the claws (1) to open the covers (2) in the direction of the arrow.
      GTY945426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction
      NOTE:

      Because the cover will be damaged, be sure the replace to rope hook with a new one.

    2. Loosen the T40 bolts (3) to remove the rope hooks (4).

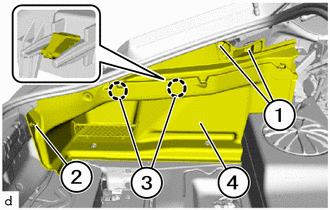

  18. REMOVE DECK TRIM SIDE BOARD AND DECK SIDE TRIM COVER LH
    1. Loosen T20 screws (1).
      GTY895858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip (2).
    3. Detach the clips (3).
    4. Thread the deck trim side board and deck side trim cover LH (4) out under the back door weatherstrip.
    5. Feed out and remove the deck trim side board and deck side trim cover LH (4).

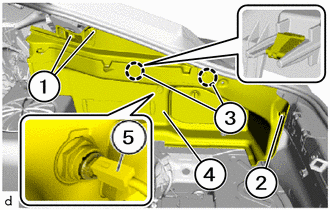

  19. REMOVE DECK TRIM SIDE BOARD AND DECK SIDE TRIM COVER RH
    1. Loosen T20 screws (1).
      GTY895859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip (2).
    3. Detach the deck trim side board and deck side trim cover RH (4) at the clips (3).
    4. Thread the deck trim side board and deck side trim cover RH (4) out under the back door weatherstrip.
    5. w/ Courtesy Light:
      1. Unlock plug connection (5) and disconnect.
    6. Feed out and remove the deck trim side board and deck side trim cover RH (4).
  20. REMOVE LUGGAGE COMPARTMENT TRIM REAR COVER
    1. Detach the clip (1).

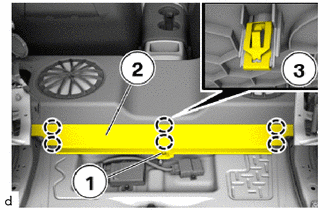

      GTY903274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clips (3) to remove the luggage compartment trim rear cover (2).
  21. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 3

  22. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

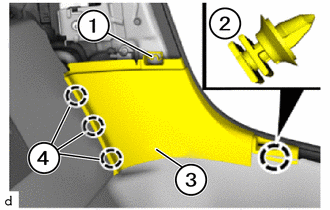

  23. REMOVE QUARTER TRIM LOWER PANEL LH
    1. Loosen nut (1).
      GTY938877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, detach the clip (2).
    3. Remove the quarter trim lower panel LH (3) from the guides (4) to the top.
  24. REMOVE QUARTER TRIM LOWER PANEL RH

    HINT:

    Use the same procedure as for the LH side.

  25. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 12 Speakers)

    See step  19

  26. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 10 Speakers)

    HINT:

    Use the same procedure as for the No. 3 speaker.

  27. REMOVE CHILD RESTRAINT SEAT COVER

    HINT:

    Use the same procedures for the opposite side.

    1. Detach the claws (1) and guides (2) to remove the child restraint seat cover (3).

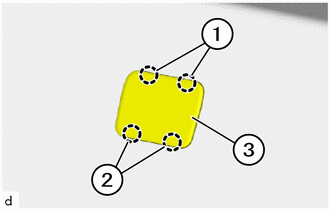

      GTY895712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE LUGGAGE COMPARTMENT TRIM FRONT COVER

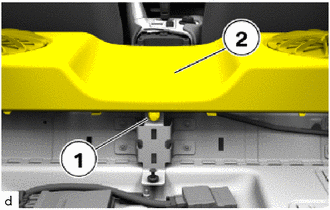

    1. Detach the clip (1) from the luggage compartment trim front cover (2).
      GTY903273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen nuts (1).

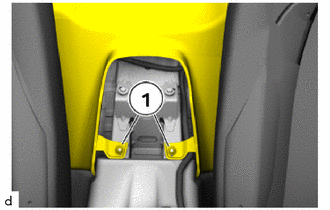

      GTY903278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clips (2), guides (3) and guides (4) to remove the luggage compartment trim front cover (1) to the top.

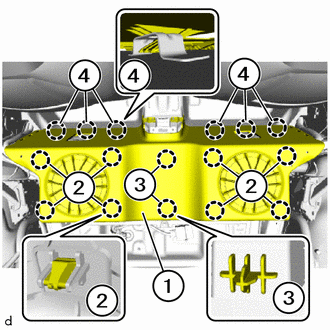

      GTY895711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR SPEAKER ASSEMBLY

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.

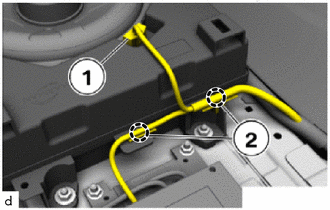

    1. Unlock plug connection (1) and disconnect.
      GTY938848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamps (2).
    3. Loosen nuts (1).

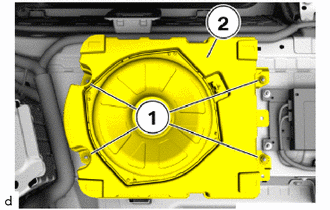

      GTY938774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the rear speaker assembly (2).
  30. REMOVE REAR SPEAKER GRILLE SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the rear speaker grille sub-assembly LH is necessary.

    1. Detach the clips (1) and guide (2) to remove the rear speaker grille sub-assembly LH (3).

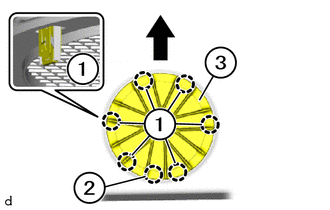

      GTY844214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Side
  31. REMOVE REAR SPEAKER GRILLE SUB-ASSEMBLY RH

    HINT:

    • Perform this procedure only when replacement of the rear speaker grille sub-assembly RH is necessary.
    • Use the same procedure as for the LH side.
  32. REMOVE DECK SIDE TRIM COVER LH

    HINT:

    Perform this procedure only when replacement of the deck side trim cover LH is necessary.

    1. Using a screwdriver with its tip wrapped in protective tape, detach the claws (1).

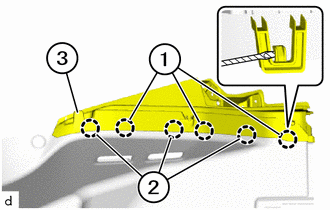

      GTY876544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Detach the guides (2) to remove the deck side trim cover LH (3) from the deck trim side board LH.
  33. REMOVE DECK SIDE TRIM COVER RH

    HINT:

    • Perform this procedure only when replacement of the deck side trim cover RH is necessary.
    • Use the same procedure as for the LH side.
  34. REMOVE ROOM PARTITION BAND ASSEMBLY (w/ Courtesy Light)

    HINT:

    Perform this procedure only when replacement of the room partition band assembly is necessary.

    1. Using a molding remover A, detach the claws (1) and guides (2) to remove the room partition band assembly (3).

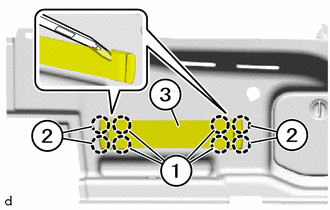

      GTY895727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE ROOM PARTITION NET ASSEMBLY (w/ Courtesy Light)

    HINT:

    Perform this procedure only when replacement of the room partition net assembly is necessary.

    1. Using a clip remover, detach the clip (1).

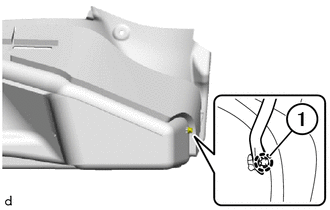

      GTY895726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

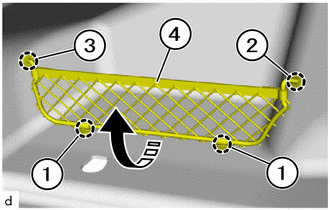

    2. Detach the guides (1) to move the room partition net assembly (4) in the direction of the arrow.
      GTY873015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move in this Direction
    3. Detach the guide (2).
    4. Detach the guide (3) to remove the room partition net assembly (4).
  36. REMOVE DECK TRIM SERVICE HOLE COVER

    HINT:

    Perform this procedure only when replacement of the deck trim service hole cover is necessary.

    1. Unlock the screw cap (1) clockwise to open the flap in the deck Trim service hole cover (2).

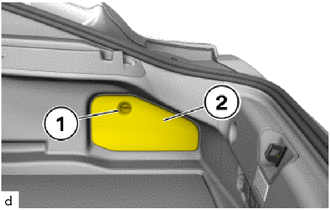

      GTY894824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the deck Trim service hole cover (2).
  37. REMOVE PIVOT MOUNTING SUPPORT LH

    HINT:

    Perform this procedure only when replacement of the pivot mounting support LH is necessary.

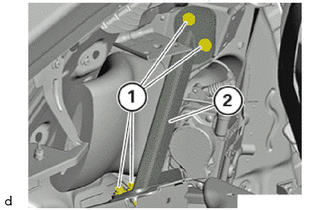

    1. Remove the bolts (1) and pivot mounting support LH (2).
      GTY1154571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE PIVOT MOUNTING SUPPORT RH

    HINT:

    • Perform this procedure only when replacement of the pivot mounting support RH is necessary.
    • Use the same procedure as for the LH side.
