Removal [03/2019 - ]: Procedure

  1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1 [07/2020 - ]

  2. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 2 [07/2020 - ]

  3. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

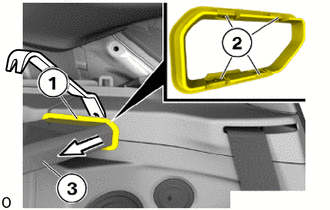

  4. SEPARATE TRANSVERSE PIPE TRIM
    1. Using a molding remover B, detach the claws (2) and separate the transverse pipe trim (1).

      HINT:

      Use the same procedure for both sides.

      GTY870488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SEAT BELT HOLE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6 [07/2020 - ]

  6. REMOVE SEAT BELT HOLE COVER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

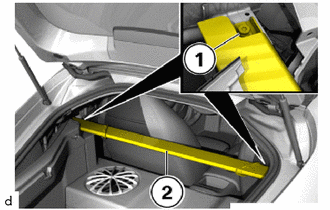

  7. REMOVE TRANSVERSE PIPE
    1. Loosen T50 bolts (1).
      GTY899014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide out the transverse pipe (2) to the top under the trim panels of the deck side trim cover.
  8. REMOVE TRANSVERSE PIPE TRIM
    1. Remove the transverse pipe trim from the transverse pipe.

      HINT:

      Use the same procedure for both sides.
