Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

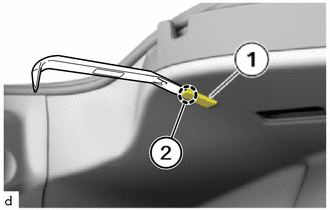

    1. Using a molding remover A, detach the claw (2) to remove the No. 1 luggage compartment light assembly (1).
      GTY903240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

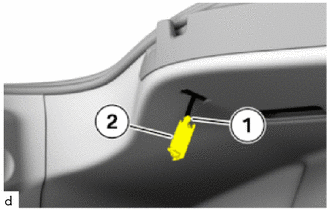

    2. Unlock plug connection (1) and disconnect.
      GTY903239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 luggage compartment light assembly (2).
