INSTALL ACCELERATOR PEDAL ASSEMBLY

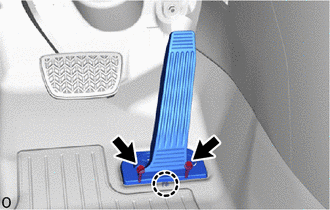

Attach the claw to install the accelerator pedal assembly.

INSTALL ACCELERATOR PEDAL PAD
1. Attach the 4 claws to install the accelerator pedal pad to the accelerator pedal assembly.
INSTALL ACCELERATOR PEDAL (W/SENSOR) ROD ASSEMBLY
NOTE:
- Avoid physical shock to the accelerator pedal sensor assembly.
- Do not disassemble the accelerator pedal sensor assembly.
- The accelerator pedal sensor assembly does not require lubrication.
- Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
1. Connect the rod of the accelerator pedal sensor assembly to the accelerator pedal assembly and install the accelerator pedal sensor assembly with the 3 nuts.
  Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
2. Connect the accelerator pedal sensor assembly connector.
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - ]
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 41 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 42 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 40 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 40 [10/2023 - ]
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 43 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 44 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 42 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 42 [10/2023 - ]
