Installation [10/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

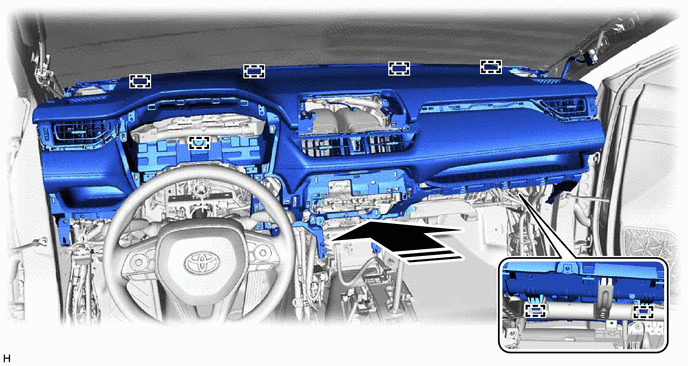

  1. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Push in the direction indicated by the arrow shown in the illustration and insert the guide to set the instrument panel safety pad assembly.
      GTY841479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -

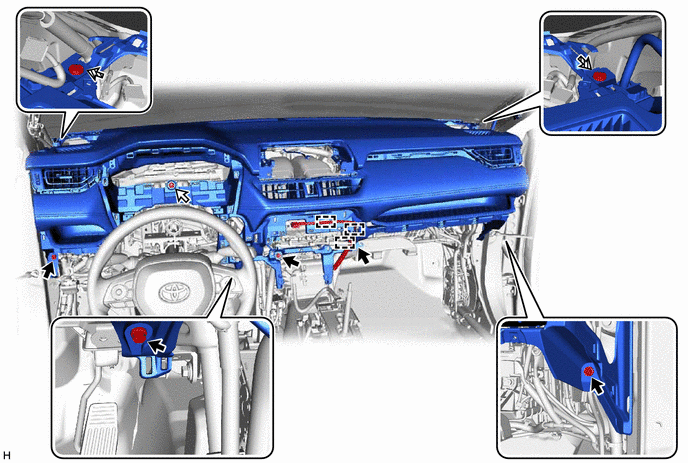

    2. Install the instrument panel safety pad assembly with the 5 bolts <B>, nut <E> and 2 clips <D>.
    3. Attach the clamp.
      GTY913930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <B> Nut <E>
      Clip <D> - -
    4. for Automatic Air Conditioning System:

      Attach the claw to install the cooler (room temp. sensor) thermistor.

      GTY888147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the steering column assembly with 2 nuts for the instrument panel reinforcement assembly.
      GTY887955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

    6. w/ Interior Illumination:

      Connect the connector.

      GTY887956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

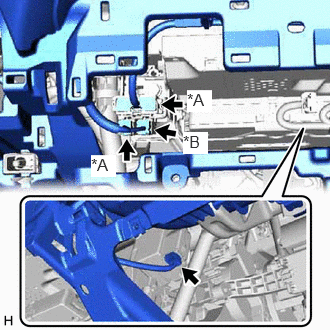

    7. Connect each connector.
      GTY879590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Navigation System
      *B w/ Navigation System or Telematics Transceiver

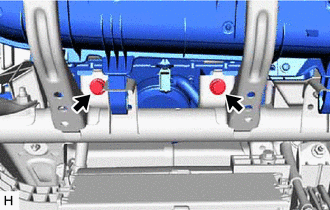

    8. Install the 2 bolts <C>.
      GTY841002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <C>

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

    9. Connect the connector and attach the guide.
      GTY887954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

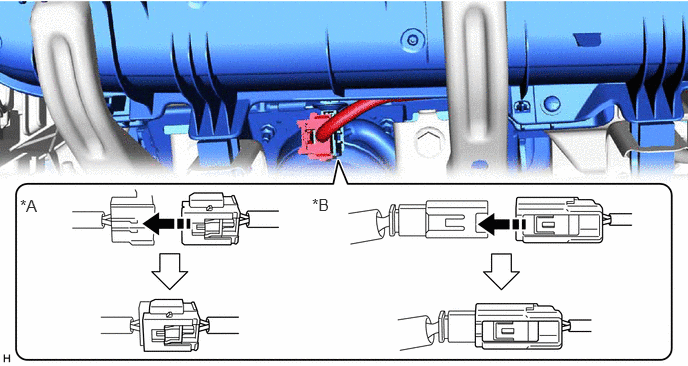

    10. Connect the airbag connector.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

      GTY869728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Dual Type *B for Single Type
      Slide in this Direction - -
  2. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL NO. 2 SPEAKER HOLE COVER

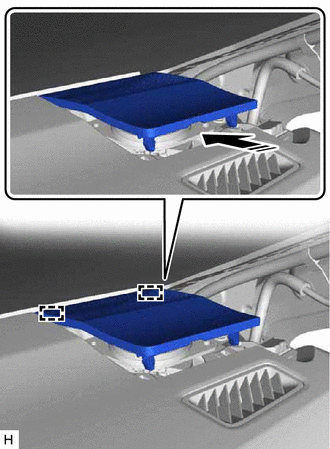

    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY857990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

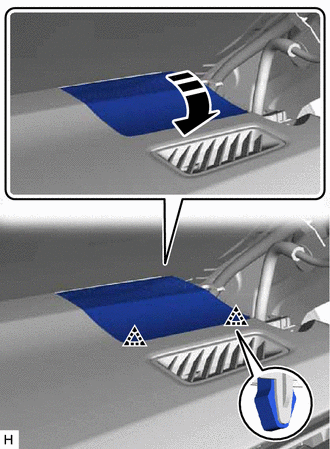

    2. Attach the clip to install the No. 2 speaker hole cover as shown in the illustration.
      GTY853440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 36 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 36 [10/2023 - ]

  6. INSTALL INSTRUMENT SIDE PANEL RH

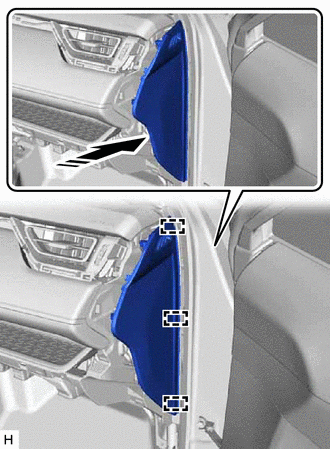

    1. Attach the guide as shown in the illustration.
      GTY851226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

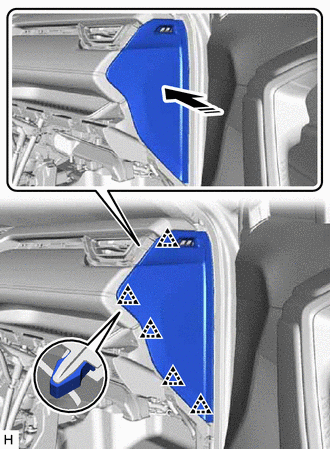

    2. Attach the clip to install the instrument side panel RH as shown in the illustration.
      GTY932517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

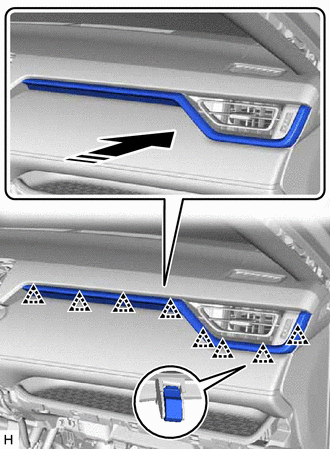

    1. Attach the clip to install the No. 2 instrument cluster finish panel garnish as shown in the illustration.
      GTY862518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

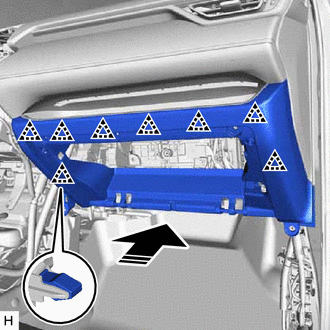

    1. Attach the clip to install the lower No. 2 instrument panel finish panel as shown in the illustration.
      GTY875102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 3 screws <A> and 2 bolts <B>.
      GTY847325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <B>
      Screw <A>
  9. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

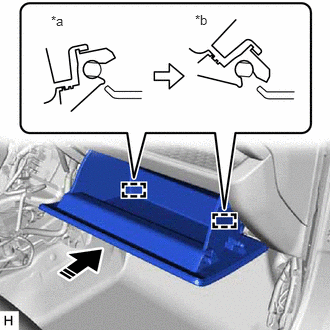

    1. With the glove compartment door assembly in the assembly position, attach the hinge horizontally.
      GTY860523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Assembly Position
      *b Closed Position
      Install in this Direction
      NOTE:

      Attach the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

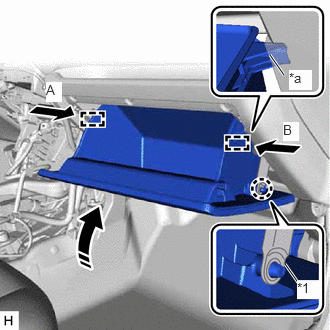

    2. Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and attach the stoppers to install the glove compartment door assembly.
      GTY855329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Glove Compartment Door Stopper Sub-assembly
      *a Stopper
      Install in this Direction
    3. Attach the claw to install the glove compartment door stopper sub-assembly.
  10. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. w/ Foot light:

      Attach the clamp and connect the connector.

      GTY887976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      GTY858671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

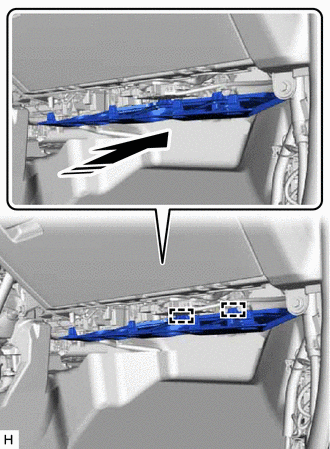

    2. Insert the guide in the direction indicated by the arrow shown in the illustration.
      GTY933405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

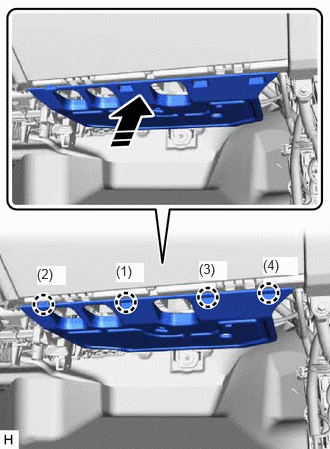

    3. Lift up in the installation direction, attach the claw in the order shown in the illustration to install the No. 2 instrument panel under cover sub-assembly.
      GTY1005993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL COWL SIDE TRIM BOARD RH

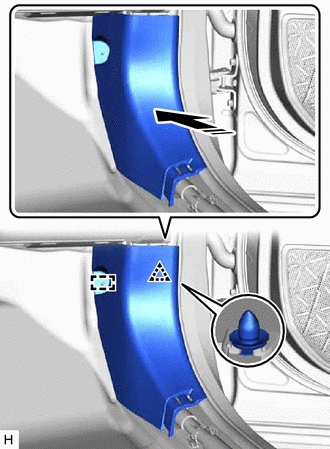

    1. Attach the clamp and clip to install the cowl side trim board RH in the direction indicated by the arrow shown in the illustration.
      GTY941711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the cap nut.
      GTY943882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 42 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 42 [10/2023 - ]

  13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH.
  14. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  15. INSTALL NO. 1 SPEAKER HOLE COVER

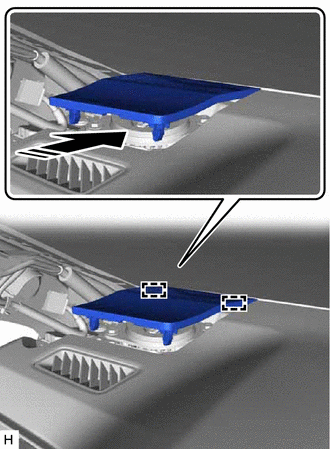

    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY885159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

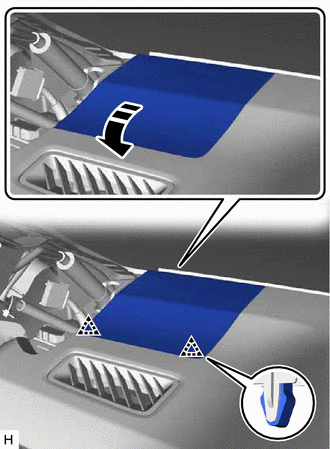

    2. Attach the clip to install the No. 1 speaker hole cover as shown in the illustration.
      GTY908292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 36 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 36 [10/2023 - ]

  17. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
    1. w/ Smart Key System:

      Connect the connector.

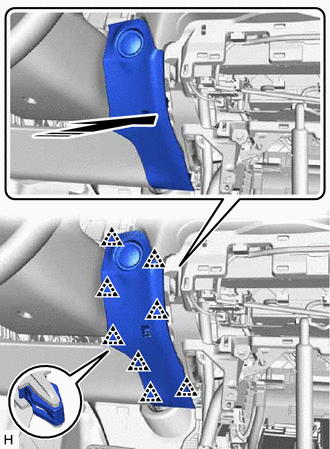

    2. Attach the clip to install the lower instrument panel finish panel assembly as shown in the illustration.
      GTY925535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  19. INSTALL FUSE BOX OPENING COVER
    1. for HV Model:

      Connect the connector.

    2. Attach the clamp.
      GTY1119292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 6 Switch Type
      *B for 3 Switch Type
      *C for 7 Switch Type
    3. Connect each connector.

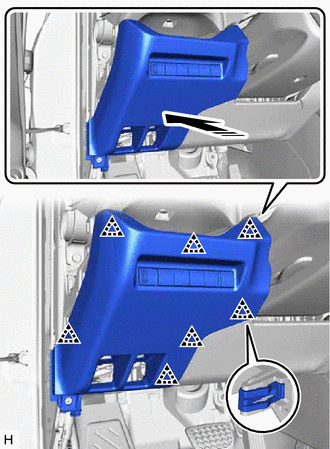

    4. Attach the clip to install the fuse box opening cover as shown in the illustration.
      GTY943636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

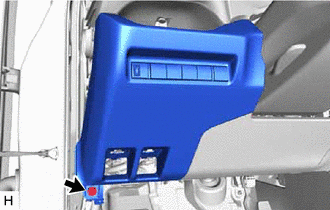

    5. GTY853897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <B> or <F>

      Install the bolt <B> or <F>.

  20. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

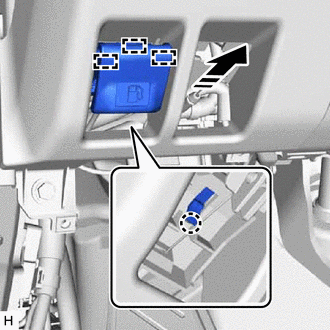

    1. Attach the guide and claw to install the fuel lid lock open lever sub-assembly in the direction indicated by the arrow as shown in the illustration.
      GTY861703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

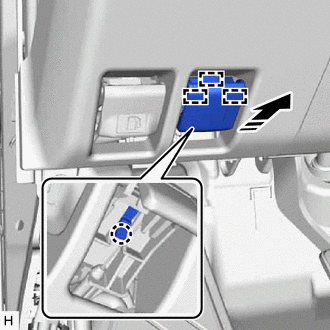

  21. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.
      GTY858609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this direction
  22. INSTALL INSTRUMENT SIDE PANEL LH

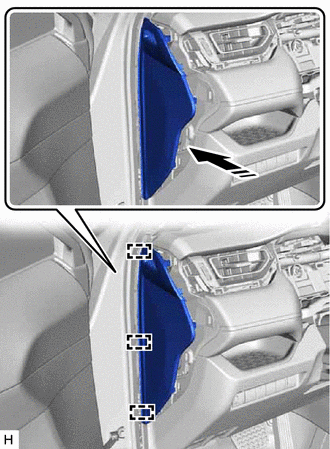

    1. Attach the guide as shown in the illustration.
      GTY847335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

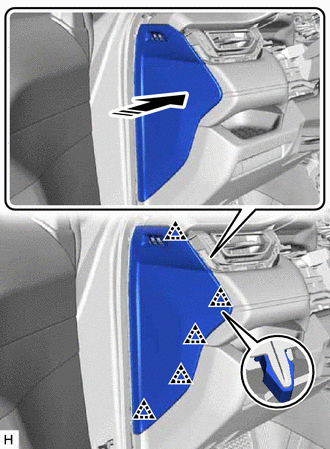

    2. Attach the clip to install the instrument side panel LH as shown in the illustration.
      GTY841978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  23. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH.
  24. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. w/ Foot light:
      GTY887950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the claw to install the DLC3.
      2. Attach the clamp and connect the connector.
    2. w/o Foot Light:
      1. Attach the claw to install the DLC3.
        GTY858673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

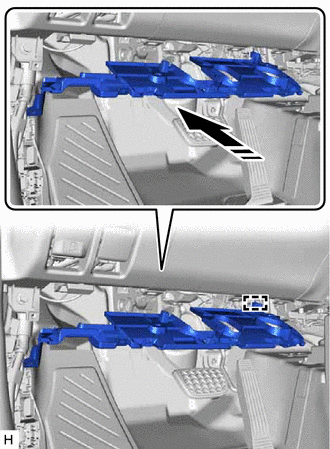

    3. Insert the guide in the direction indicated by the arrow shown in the illustration.
      GTY840154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

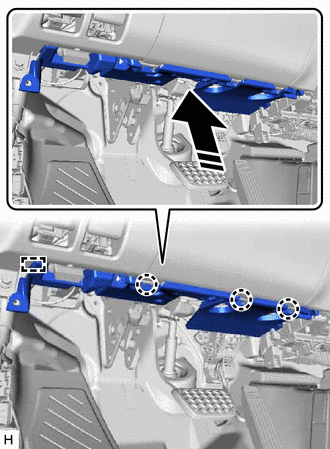

    4. Lift up in the direction indicated by the arrow shown in the illustration to attach the guide and claw to install the No. 1 instrument panel under cover sub-assembly.
      GTY856521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

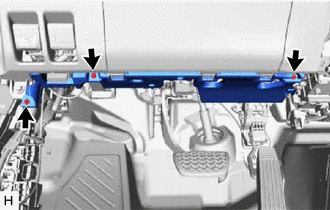

    5. Install the 3 screws <A>.
      GTY909035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  25. INSTALL COWL SIDE TRIM BOARD LH

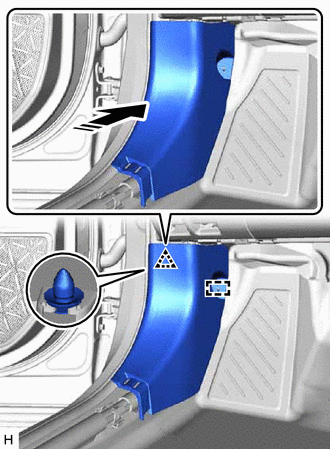

    1. Attach the guide and clip to install the cowl side trim board LH in the direction indicated by the arrow shown in the illustration.
      GTY852102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the cap nut.
      GTY887936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 42 [10/2023 - ]

  27. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Connect each connector.

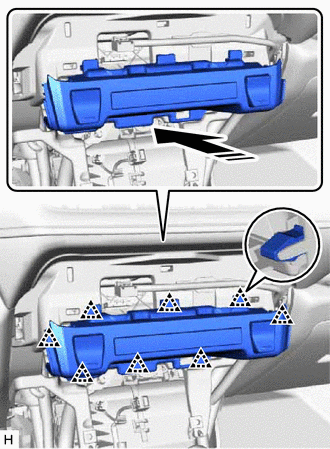

    2. Attach the clip to install the lower center instrument panel finish panel.
      GTY865516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  28. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  29. INSTALL COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 1

  30. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. for 7 Inch Display:

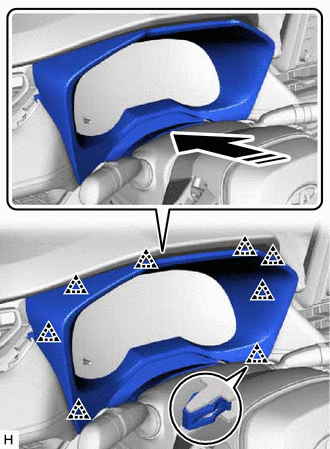

      1. Attach the clip to install the instrument cluster finish panel assembly.
        GTY939710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

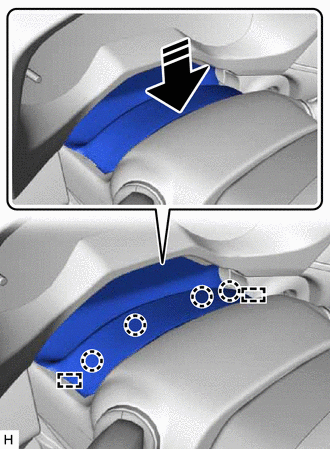

      2. Attach the claw and guide.
        GTY939031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    2. for 12.3 Inch Display:

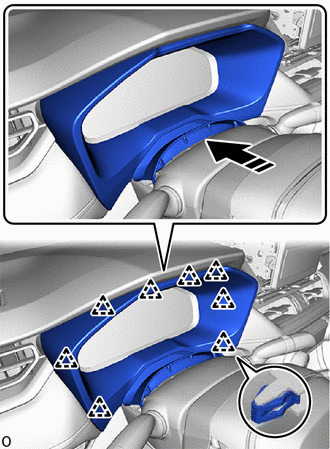

      1. Attach the clip to install the instrument cluster finish panel assembly.
        GTY1117810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

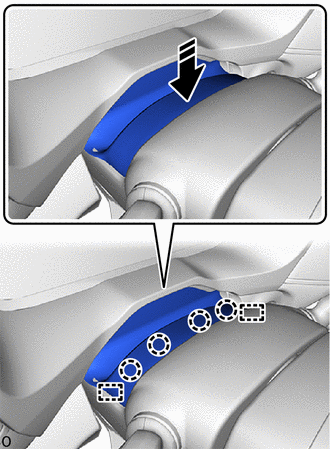

      2. Attach the claw and guide.
        GTY1112634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  31. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

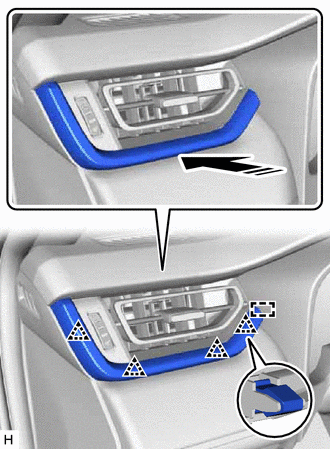

    1. Attach the guide and clip to install the instrument cluster finish panel garnish as shown in the illustration.
      GTY906647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  32. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 4

  33. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
    1. for 8 Inch Display:

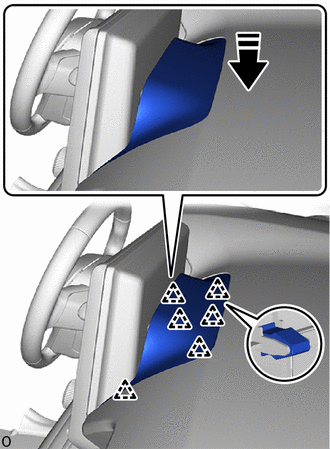

      1. Attach the clip to install the center upper instrument cluster finish panel.
        GTY1111197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    2. for 10.5 Inch Display:

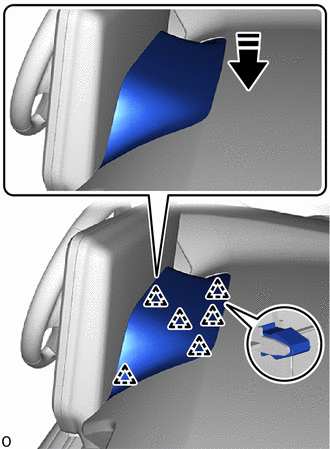

      1. Attach the clip to install the center upper instrument cluster finish panel.
        GTY1115834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  34. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [12/2021 - ]

  35. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  36. INSTALL BATTERY HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 3

  37. INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

    Refer to PROCEDURE - Step 4

  38. INSTALL DECK BOARD ASSEMBLY (for HV Model)

    Refer to PROCEDURE - Step 5

  39. INSTALL LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 3

  40. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [08/2020 - ]

  41. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [08/2020 - ]
