Removal [12/2022 - ]: Procedure
- PERFORM RESOLVER INITIALIZATION NOTE:
If it is necessary to replace the rear traction motor with transaxle assembly, make sure to perform resolver initialization before starting work.
Refer to UTILITY [12/2022 - ]
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [12/2022 - ]
- REMOVE FRONT WIPER ARM HEAD CAP
Refer to PROCEDURE - Step 1 - REMOVE SHIELD CAP
Refer to PROCEDURE - Step 2 - REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
Refer to PROCEDURE - Step 4
- REMOVE WINDSHIELD LOWER OUTSIDE MOULDING LH
Refer to PROCEDURE - Step 1 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 1 [03/2023 - ] - REMOVE WINDSHIELD LOWER OUTSIDE MOULDING RH
- Use the same procedure as for the LH side.
- REMOVE COWL WATER EXTRACT SHIELD LH
Refer to PROCEDURE - Step 7
- REMOVE COWL WATER EXTRACT SHIELD RH
Refer to PROCEDURE - Step 8
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9

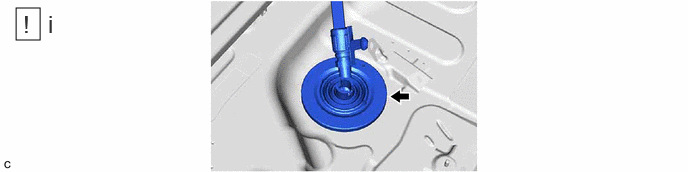

- CHECK TERMINAL VOLTAGE
Refer to PROCEDURE - Step 13 - INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 - INSTALL COWL WATER EXTRACT SHIELD RH
- INSTALL COWL WATER EXTRACT SHIELD LH
- INSTALL WINDSHIELD LOWER OUTSIDE MOULDING RH
- INSTALL WINDSHIELD LOWER OUTSIDE MOULDING LH
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
Refer to PROCEDURE - Step 10 - INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
Refer to PROCEDURE - Step 9 - INSTALL SHIELD CAP
- INSTALL FRONT WIPER ARM HEAD CAP
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - ]
- REMOVE DECK FLOOR BOX RH
Refer to PROCEDURE - Step 3 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 3 [03/2023 - ]
- REMOVE DECK FLOOR BOX LH
Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

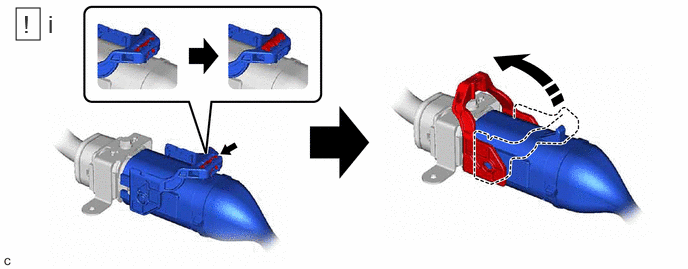

- DISCONNECT REAR TRACTION MOTOR CABLE WARNING:
Be sure to wear insulated gloves.
- REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

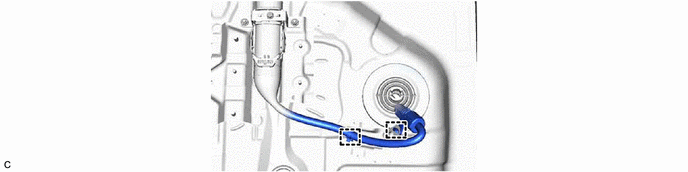

- REMOVE NO. 6 FLOOR WIRE

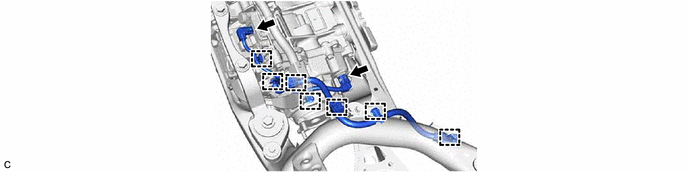

- DISCONNECT REAR TRACTION MOTOR CABLE
- REMOVE REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY
- Using a mini crane and 2 belt slings, hold the rear traction motor with transaxle assembly.WARNING:
- Do not lift the rear traction motor with transaxle assembly more than necessary.
- When lifting the rear traction motor with transaxle assembly, make sure it is well balanced.
NOTE:- Lightly shake the rear traction motor with transaxle assembly by hand to make sure it is securely held while performing work.
- Do not shake the rear traction motor with transaxle assembly excessively while holding it.

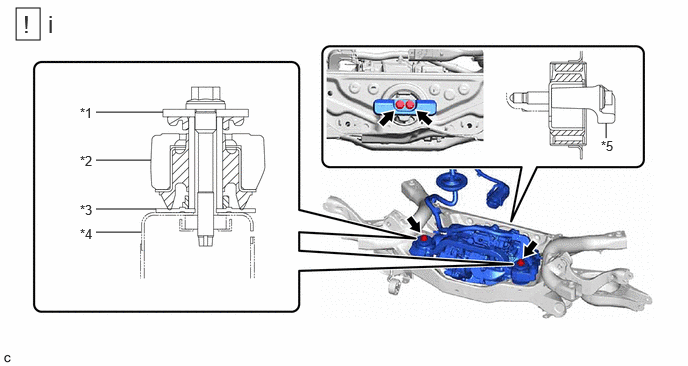

*1 Upper Differential Mount Stopper *2 Front Differential Support Assembly *3 Lower Differential Mount Stopper *4 Rear Suspension Member Sub-assembly *5 Differential Mass Damper - - - Remove the 4 bolts, 2 upper differential mount stoppers, 2 lower differential mount stoppers, differential mass damper and rear traction motor with transaxle assembly from the rear suspension member sub-assembly.NOTE:
- Be careful not to drop the rear traction motor with transaxle assembly.
- Be careful not to damage the installation surfaces of the rear traction motor with transaxle assembly when removing it.

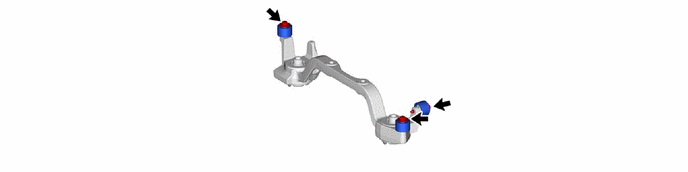

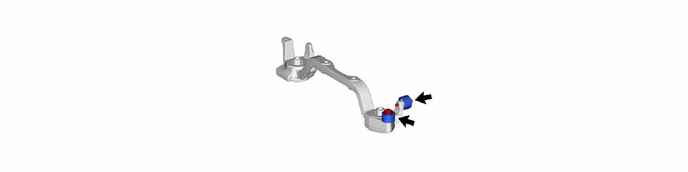

- Remove the 4 bolts, 2 upper differential mount stoppers, 2 lower differential mount stoppers, differential mass damper and rear traction motor with transaxle assembly from the rear suspension member sub-assembly.
- Using a mini crane and 2 belt slings, hold the rear traction motor with transaxle assembly.

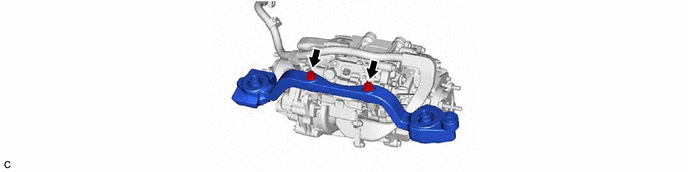

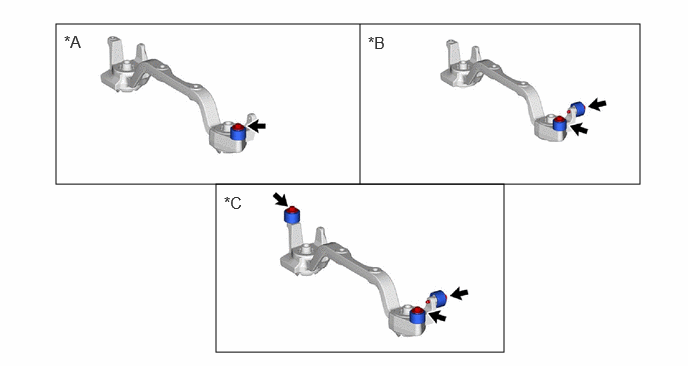

- REMOVE FRONT DIFFERENTIAL SUPPORT ASSEMBLY

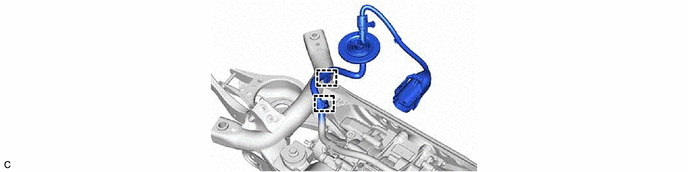

- REMOVE REAR TRACTION MOTOR CABLE

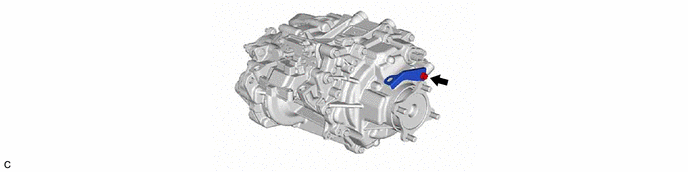

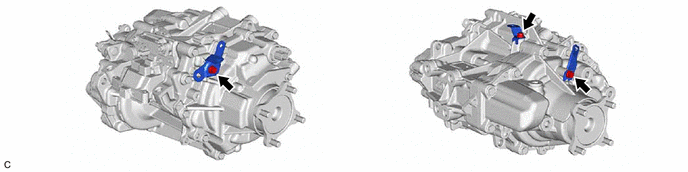

See step 3 - REMOVE MOTOR CABLE BRACKET
- REMOVE WIRE HARNESS CLAMP BRACKET

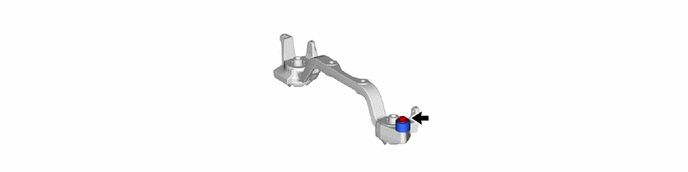

- REMOVE DIFFERENTIAL DYNAMIC DAMPER
HINT:
