Removal [12/2022 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

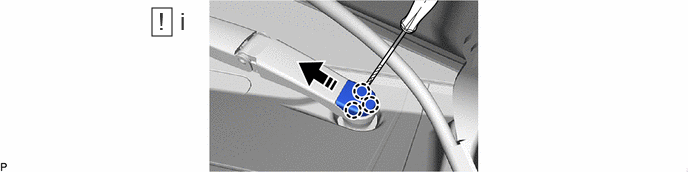

    1. GTY1144023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the front wiper arm head cap.
  2. REMOVE SHIELD CAP (for M20A-FXS)

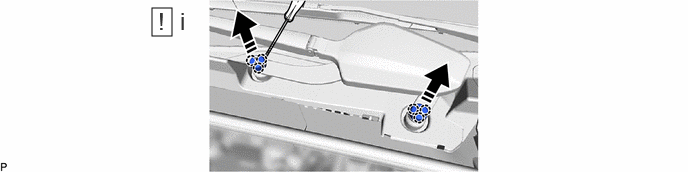

    1. GTY1157719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 6 claws to remove the 2 shield caps.
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

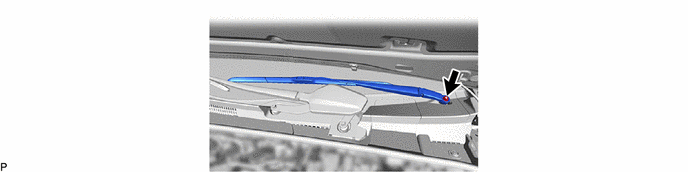

    1. GTY1147270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. for M20A-FXS:

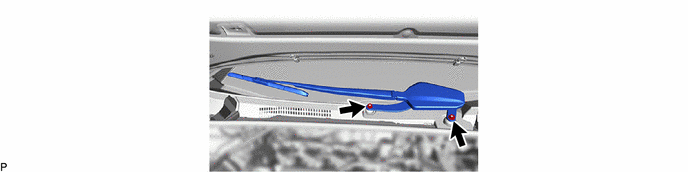

      GTY1147269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WINDSHIELD LOWER OUTSIDE MOULDING LH
    Refer to PROCEDURE - Step 1 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 1 [03/2023 - ]
  6. REMOVE WINDSHIELD LOWER OUTSIDE MOULDING RH
    1. Use the same procedure as for the LH side.
  7. REMOVE COWL WATER EXTRACT SHIELD LH

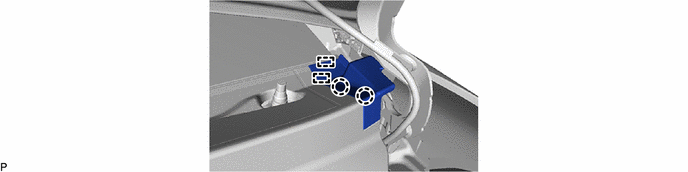

    1. GTY1147264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COWL WATER EXTRACT SHIELD RH
    1. Use the same procedure as for the LH side.
  9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

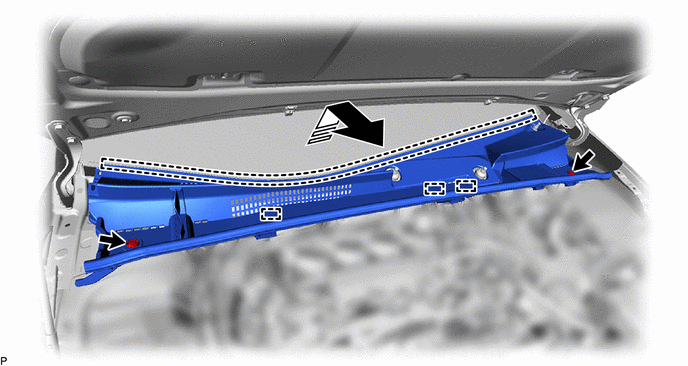

    1. GTY1151260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    NOTE:

    Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.
    1. for M20A-FXS:

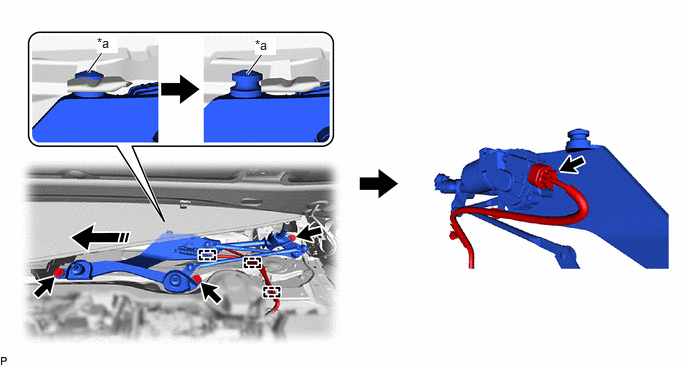

      GTY1145227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet - -
      Remove in this Direction - -
  11. REMOVE FRONT WIPER CRANK SUB-ASSEMBLY

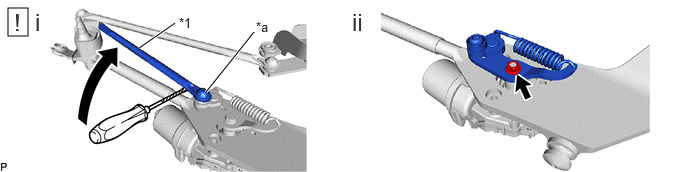

    1. GTY1158863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Windshield Wiper Link Rod - -
      *a Pivot of Front Wiper Crank Sub-assembly - -
      1. Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 windshield wiper link rod from the pivot of the front wiper crank sub-assembly as shown in the illustration.
      2. Remove the nut and front wiper crank sub-assembly.
  12. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY
    1. GTY1147258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
