Removal [12/2022 - ]: Procedure

  1. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 3

  2. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  4. REMOVE NO. 1 FUEL VAPOR FEED HOSE

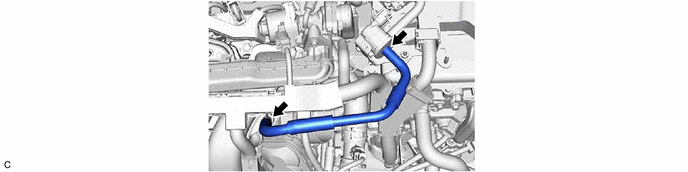

    1. GTY1144435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT ENGINE WIRE
    1. GTY1109182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 2 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - ]
  7. REMOVE EGR VALVE ADAPTER GASKET

    Refer to PROCEDURE - Step 3 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 3 [03/2023 - ]

  8. REMOVE EGR INLET GASKET

    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

  9. SEPARATE VACUUM HOSE

    Refer to PROCEDURE - Step 1

  10. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    Refer to PROCEDURE - Step 2
  11. DISCONNECT NO. 3 WATER BY-PASS PIPE

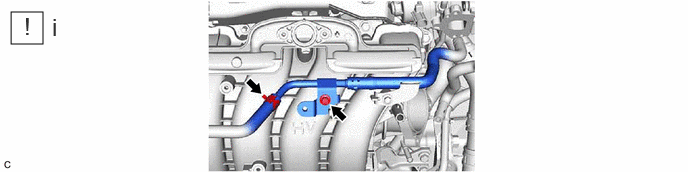

    1. GTY1145908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and separate the No. 3 water by-pass pipe from the intake manifold.
  12. REMOVE WIRING HARNESS CLAMP BRACKET

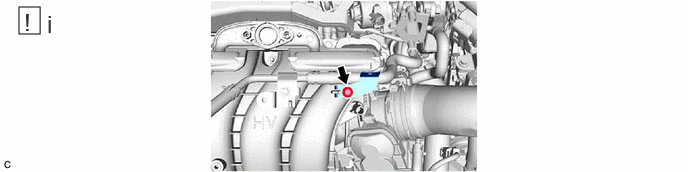

    1. GTY1150992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and separate the wiring harness clamp bracket from the intake manifold.
  13. REMOVE INTAKE MANIFOLD STAY

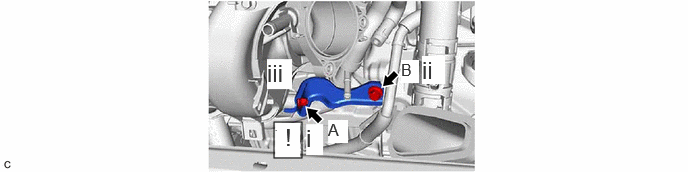

    1. GTY1155538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt (A).
      2. Remove the bolt (B).
      3. Disengage the guide and remove the intake manifold stay.
  14. REMOVE INTAKE MANIFOLD

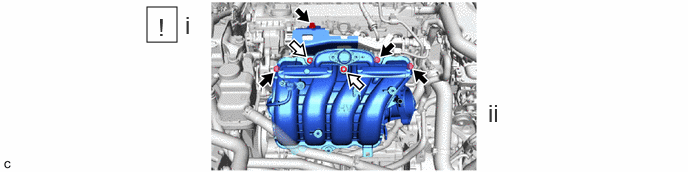

    1. GTY1140223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      bolt nut
      1. Remove the bolt and 2 nuts and No. 2 fuel delivery guard.
      2. Remove the 3 bolts and intake manifold.
  15. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. GTY1109181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE VACUUM HOSE
    1. GTY1107146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
