Removal [12/2022 - ]: Procedure

  1. REMOVE INVERTER WATER PUMP WITH MOTOR ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  3. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

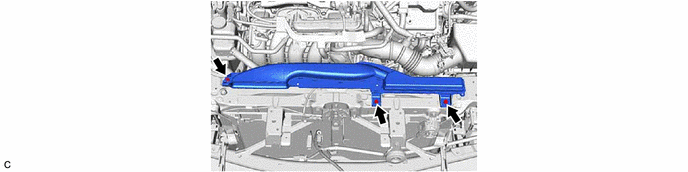

  4. REMOVE INLET NO. 1 AIR CLEANER
    1. GTY1140429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

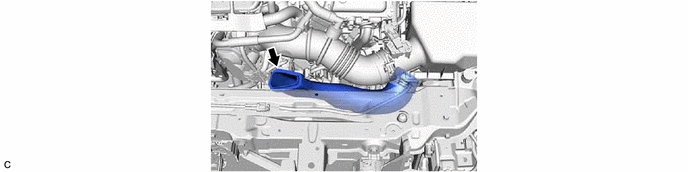

  5. REMOVE INLET NO. 2 AIR CLEANER
    1. GTY1150733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD LOCK ASSEMBLY
    Refer to PROCEDURE - Step 3 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 3 [03/2023 - ]
  7. REMOVE RADIATOR MOUNTING BRACKET UPPER LH (w/ Bracket)

    Refer to PROCEDURE - Step 40 [12/2022 - 01/2025] , or refer to PROCEDURE - Step 38 [01/2025 - ]

  8. REMOVE RADIATOR MOUNTING BRACKET UPPER RH (w/ Bracket)

    Refer to PROCEDURE - Step 41 [12/2022 - 01/2025] , or refer to PROCEDURE - Step 39 [01/2025 - ]

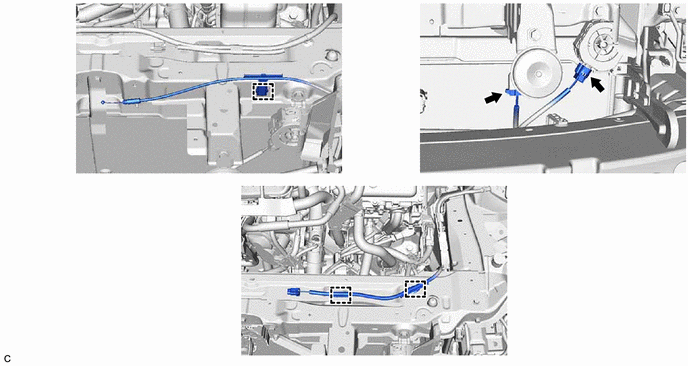

  9. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    1. GTY1154560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

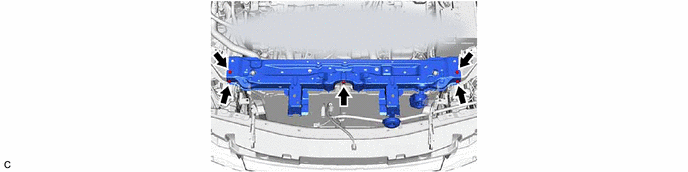

    2. GTY1144999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

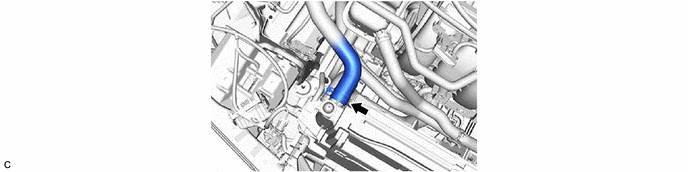

  10. DISCONNECT NO. 1 WATER BY-PASS HOSE
    1. GTY1150729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

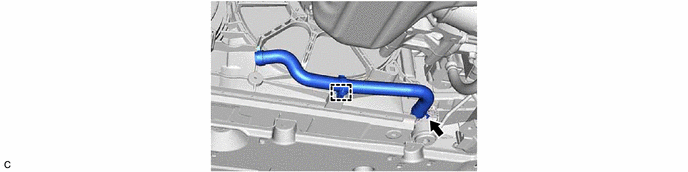

  11. DISCONNECT INLET HYBRID RADIATOR HOSE
    1. GTY1150731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

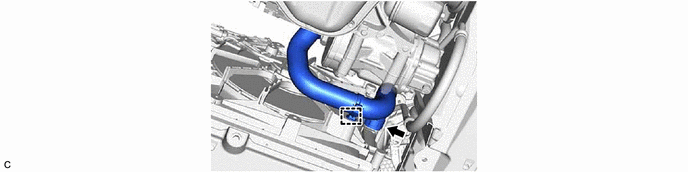

  12. DISCONNECT NO. 2 RADIATOR HOSE
    1. GTY1150848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

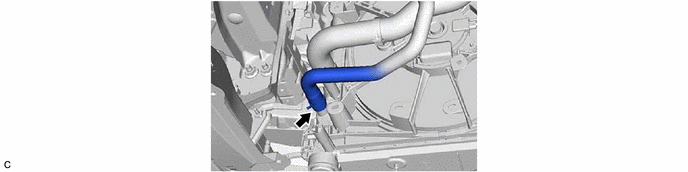

  13. DISCONNECT INLET NO. 1 INVERTER COOLING HOSE
    1. GTY1150856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

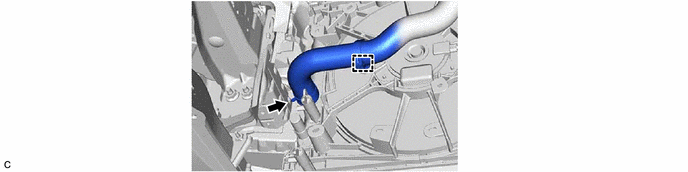

  14. DISCONNECT NO. 1 RADIATOR HOSE
    1. GTY1150852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

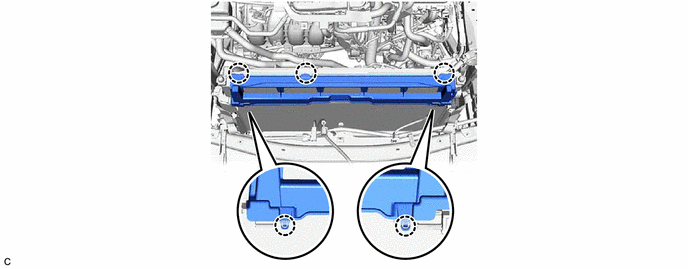

  15. REMOVE NO. 2 RADIATOR AIR GUIDE
    1. GTY1150854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

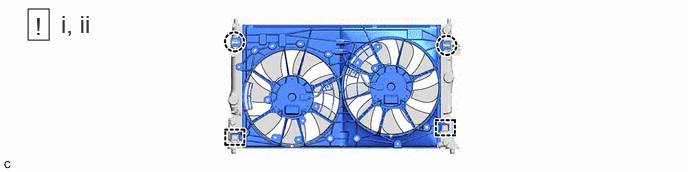

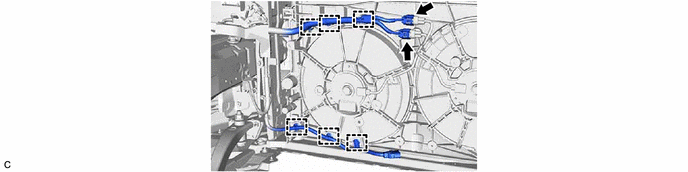

  16. REMOVE FAN WITH MOTOR ASSEMBLY
    1. GTY1140454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1140426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws.
      2. Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when removing the fan with motor assembly.

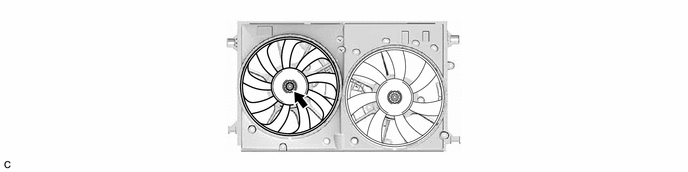

  17. REMOVE FAN RH
    1. GTY1150851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

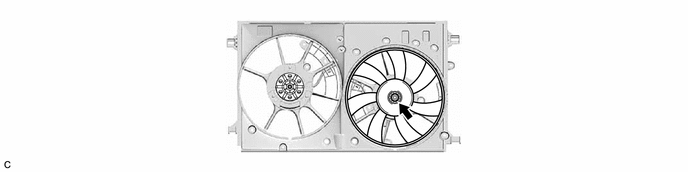

  18. REMOVE FAN LH
    1. GTY1150850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

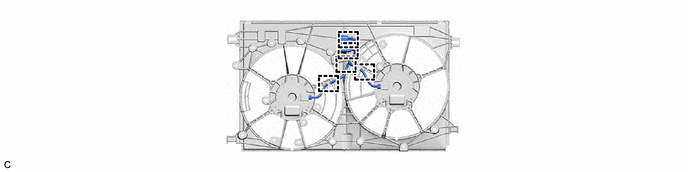

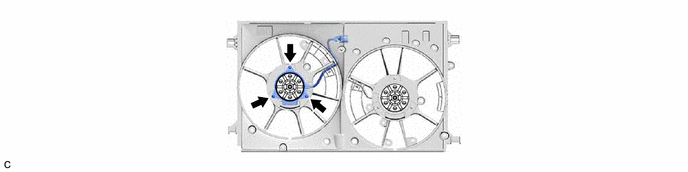

  19. REMOVE COOLING FAN MOTOR RH
    1. GTY1150713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1150861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

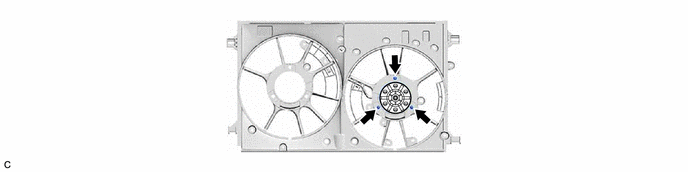

  20. REMOVE COOLING FAN MOTOR LH
    1. GTY1150866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
