Removal [12/2022 - ]: Procedure

Refer to REMOVAL [12/2022 - ]

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

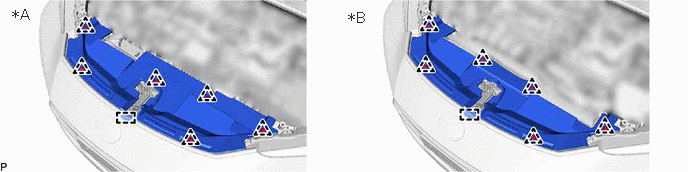

   *A

   for 2ZR-FXE

   *B

   for M20A-FXS

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

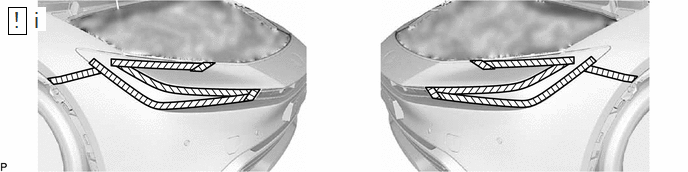

   1. Apply protective tape around the front bumper assembly as shown in the illustration.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

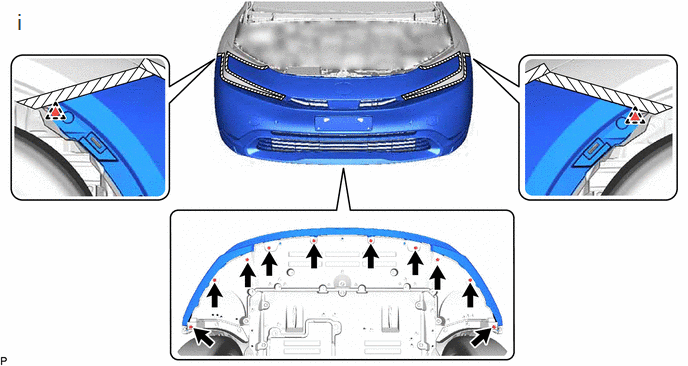

   1. Remove the 2 clips and 10 screws.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

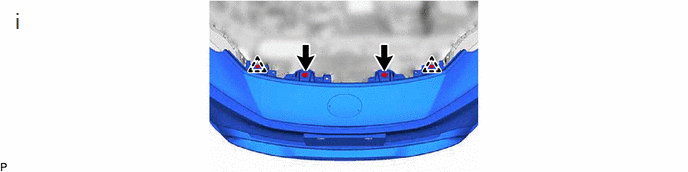

   1. Remove the 2 clips and 2 bolts.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

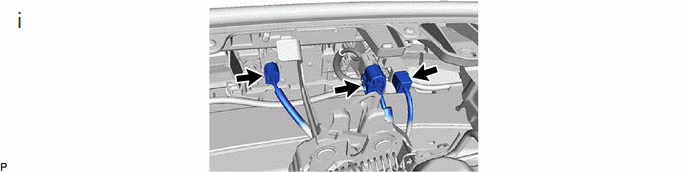

   1. Disconnect each connector.

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

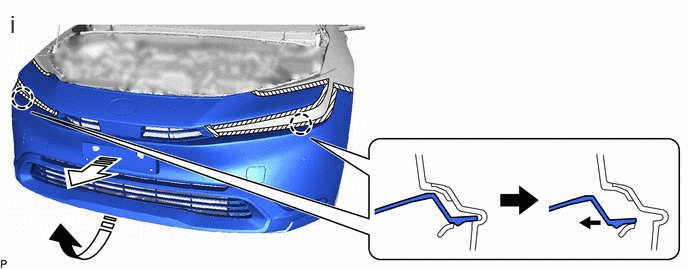

   Place Hand Here

   Remove in this Direction

   1. Pull back the side of the front bumper assembly as shown in the illustration and disengage the 4 clips.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

      HINT:

      Use the same procedure for the RH side and LH side.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

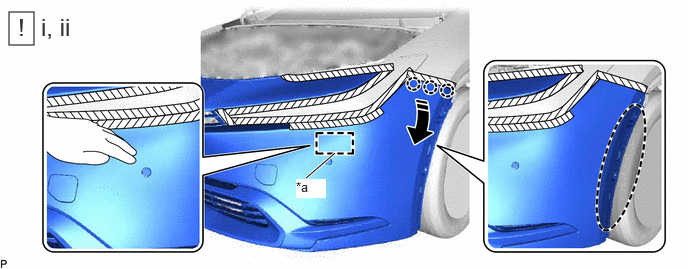

   *a	Press location	-	-
   	Place Hand Here		Remove in this Direction

   1. Disengage the 3 claws as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

   2. While pressing the location shown in the illustration, move the end portion of the front bumper assembly in the direction indicated by the arrow.
      NOTE:

      Be careful not to damage the front bumper assembly when striking it with your hand.

7. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction (1)

   Remove in this Direction (2)

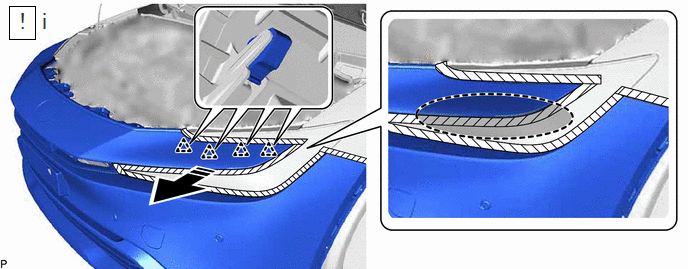

   1. Disengage the 2 claws and remove the front bumper assembly as shown in the illustration.
