Removal [12/2022 - ]: Procedure

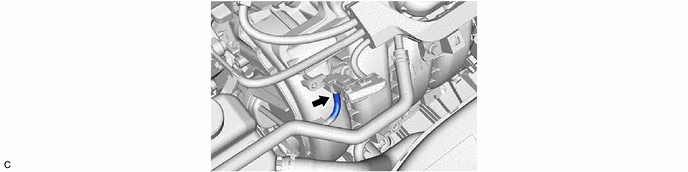

  1. SEPARATE VACUUM HOSE
    1. GTY1144315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

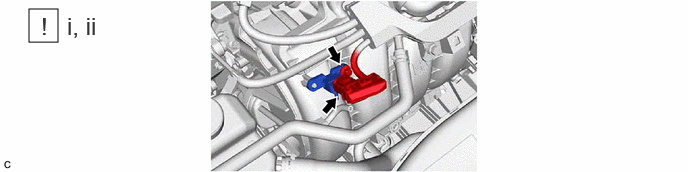

  2. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. GTY1153483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
      2. Using an 8 mm socket wrench, remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) from the intake manifold.
