Disassembly [01/2025 - ]: Procedure
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)
Refer to PROCEDURE - Step 2 - REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 2
- REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 3
- REMOVE FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)
Refer to PROCEDURE - Step 4
- REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 5 - REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 6 - REMOVE FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
Refer to PROCEDURE - Step 7 - REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
Refer to PROCEDURE - Step 3

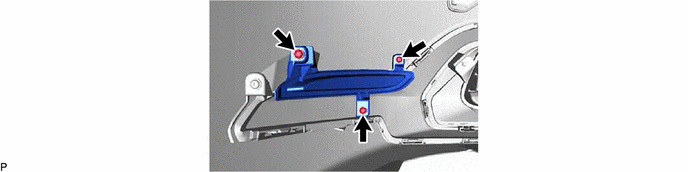

- REMOVE LED ILLUMINATION LIGHT LH (w/ LED Illumination Light)
Refer to PROCEDURE - Step 2
- REMOVE LED ILLUMINATION LIGHT RH (w/ LED Illumination Light)
- Use the same procedure as for the LH side.
- REMOVE FRONT MARKER LIGHT ASSEMBLY LH (w/ Side Marker Light)
Refer to PROCEDURE - Step 2 - REMOVE FRONT MARKER LIGHT ASSEMBLY RH (w/ Side Marker Light)
- Use the same procedure as for the LH side.

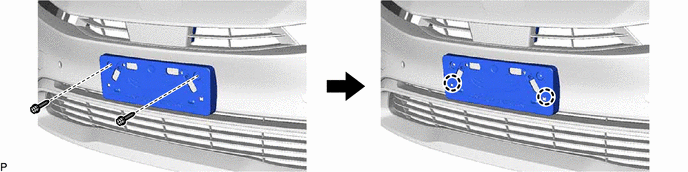

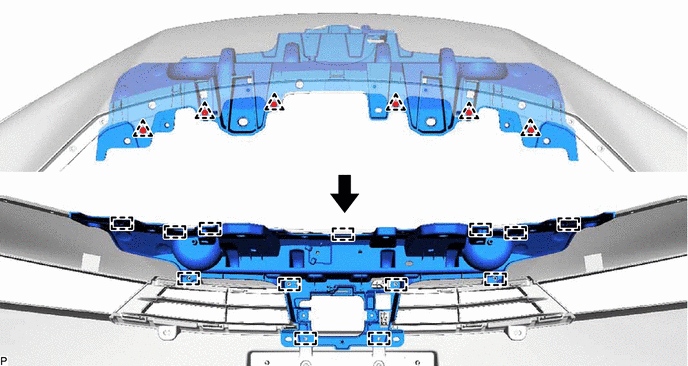

- REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET

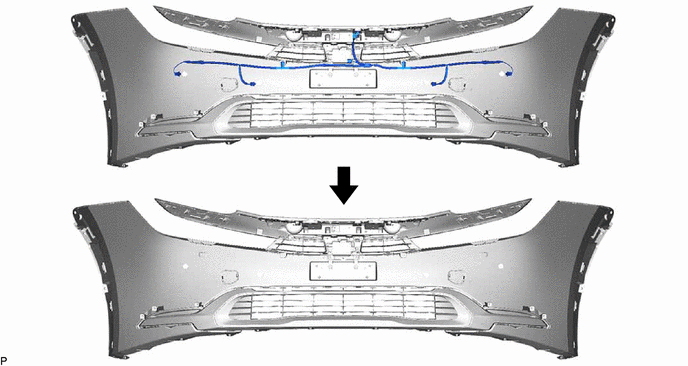

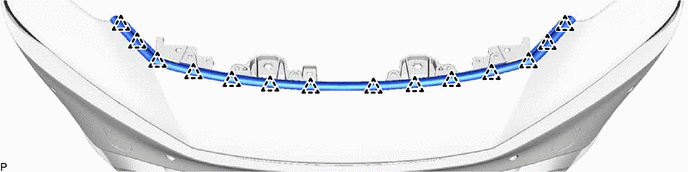

- REMOVE PARKING ASSIST WIRE (w/ Panoramic View Monitor System)

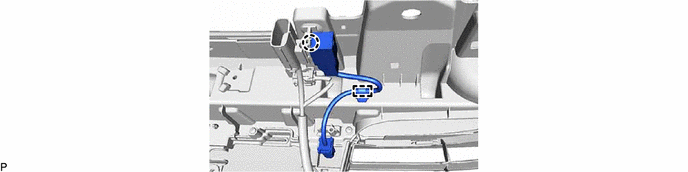

- REMOVE CONNECTOR COVER (w/ Connector Cover)
- REMOVE NO. 3 ENGINE ROOM WIRE (w/ Wire Harness)
HINT:
The illustrations are representative examples, and details may differ.

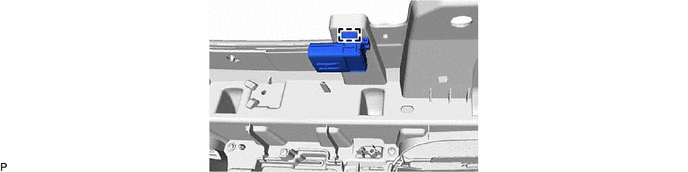

- REMOVE FRONT ULTRASONIC SENSOR CLIP (w/ Wire Harness)
- REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

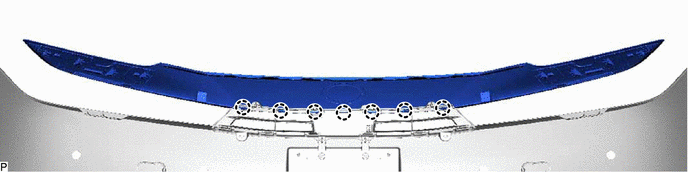

See step 1 - REMOVE HOOD TO FRONT END PANEL SEAL

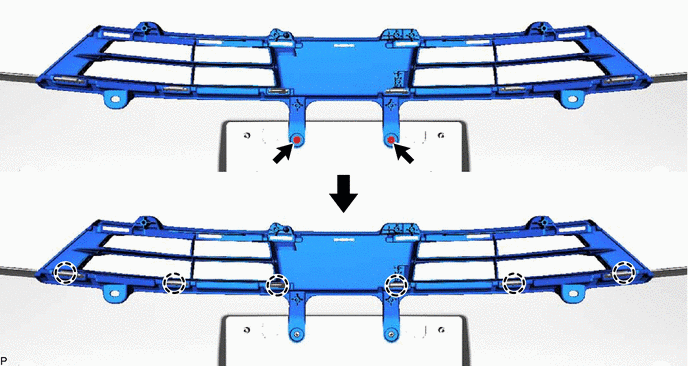

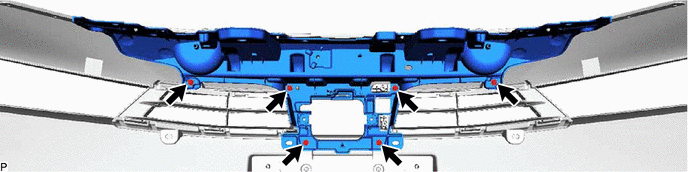

- REMOVE RADIATOR INNER GRILLE

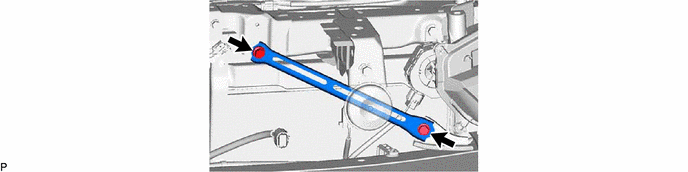

- REMOVE FRONT BUMPER BAR

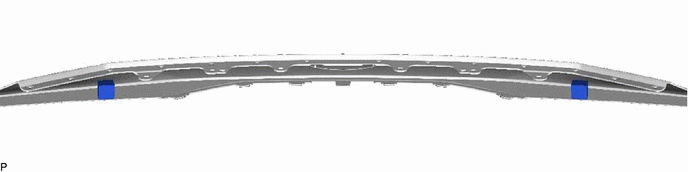

- REMOVE FRONT BUMPER PAD
- REMOVE RADIATOR GRILLE GARNISH

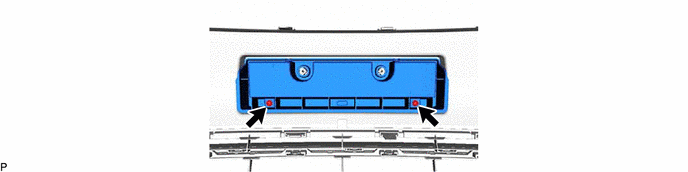

- REMOVE FRONT BUMPER MOUNTING BRACKET (w/ Front bumper mounting bracket)

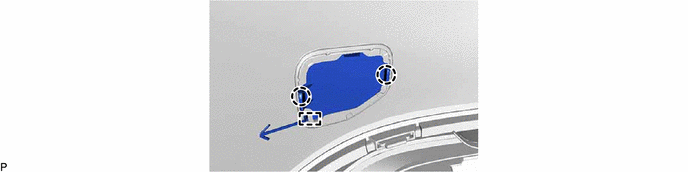

- REMOVE FRONT BUMPER HOLE COVER LH
- REMOVE FRONT BUMPER HOLE COVER RH
- Use the same procedure as for the LH side.

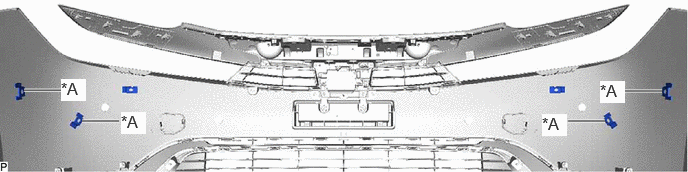

- REMOVE FOG LIGHT COVER LH (for Separate Type)
- REMOVE FOG LIGHT COVER RH (for Separate Type)
- w/o LED Illumination Light:
Use the same procedure as for the LH side.
- w/o LED Illumination Light:

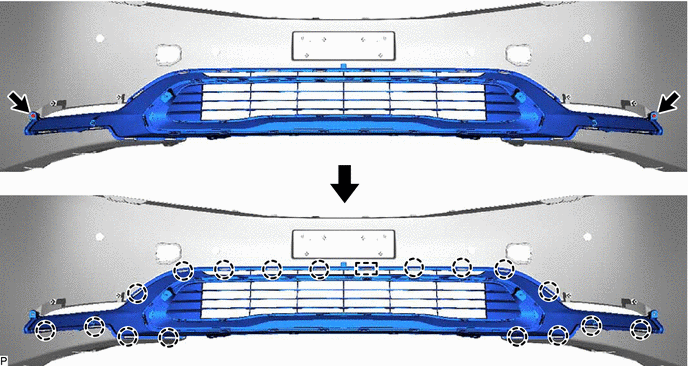

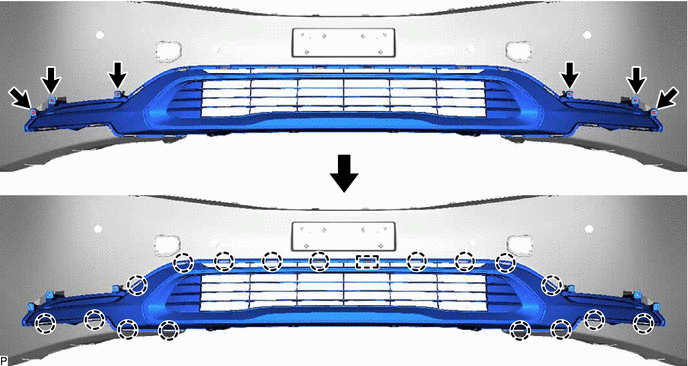

- REMOVE NO. 1 LOWER RADIATOR GRILLE

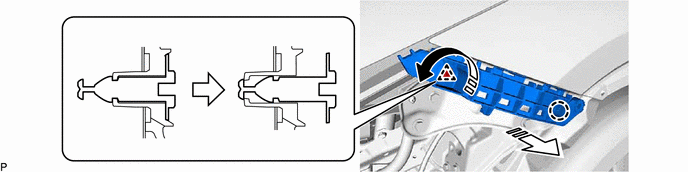

- REMOVE FRONT BUMPER SIDE SUPPORT LH
HINT:
Perform this procedure only when replacement of the front bumper side support LH is necessary.
- REMOVE FRONT BUMPER SIDE SUPPORT RH
- Use the same procedure as for the LH side.

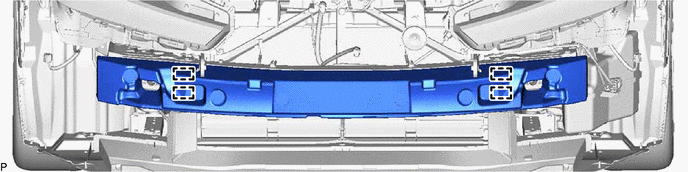

- REMOVE FRONT BUMPER ENERGY ABSORBER
HINT:
Perform this procedure only when replacement of the front bumper energy absorber is necessary.
- REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
Refer to PROCEDURE - Step 14
- REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
- Use the same procedure as for the LH side.

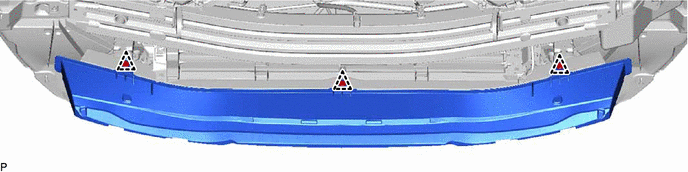

- REMOVE FRONT BUMPER LOWER ABSORBER
HINT:
Perform this procedure only when replacement of the front bumper lower absorber is necessary.
- REMOVE INLET NO. 1 AIR CLEANER (w/ Bracket)
Refer to PROCEDURE - Step 4
- REMOVE HOOD LOCK ASSEMBLY (w/ Bracket)

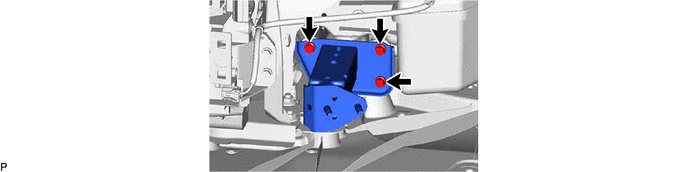

Refer to PROCEDURE - Step 3 - REMOVE UPPER RADIATOR MOUNTING BRACKET LH (w/ Bracket)
- REMOVE UPPER RADIATOR MOUNTING BRACKET RH (w/ Bracket)
- Use the same procedure as for the LH side.

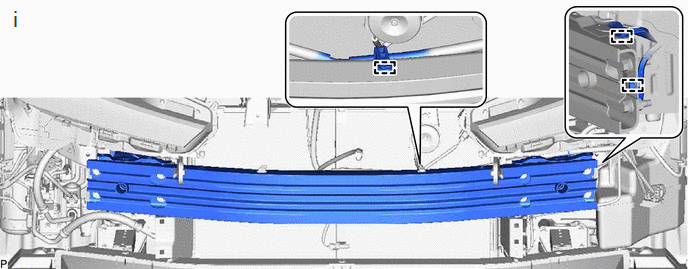

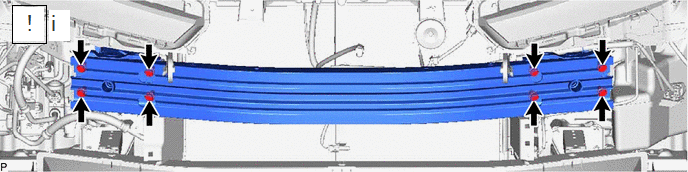

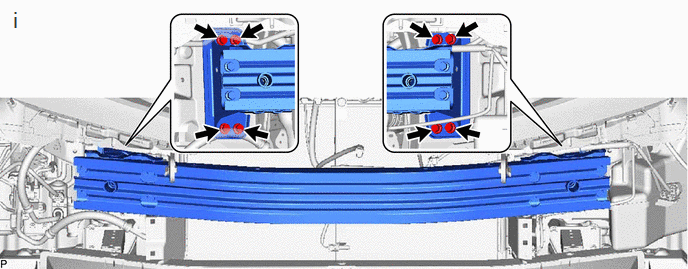

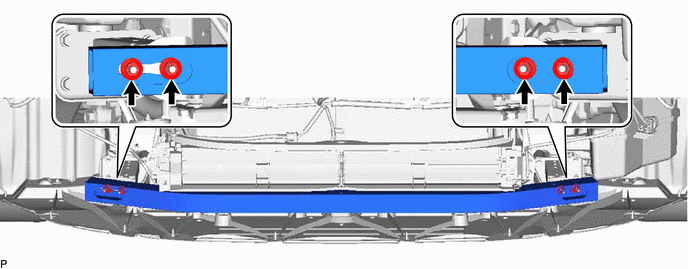

- REMOVE FRONT BUMPER REINFORCEMENT
HINT:
Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.
- REMOVE NO. 2 FRONT BUMPER REINFORCEMENT
HINT:
Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.
- REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH
HINT:
Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.
- REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
- Use the same procedure as for the LH side.

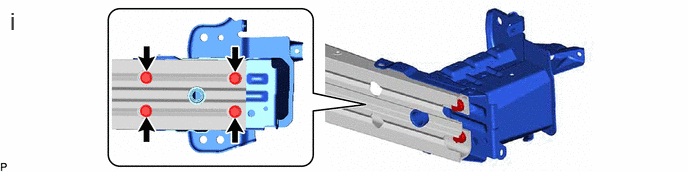

- REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type A)
HINT:
Perform this procedure only when replacement of the front side member bracket sub-assembly is necessary.

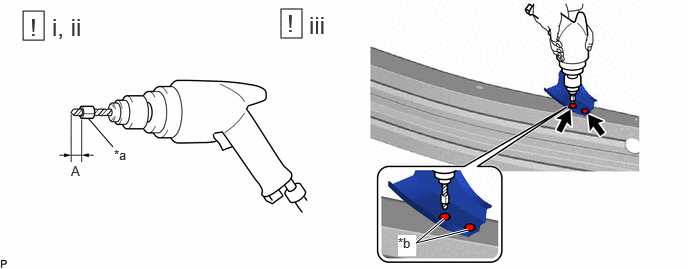

*a Tape *b Flange - Insert a 6.0 mm (0.236 in.) drill bit into a drill.
- Tape the 6.0 mm (0.236 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement
Area Measurement Area Measurement A 5.0 mm (0.197 in.) - - NOTE:Tape the 6.0 mm (0.236 in.) drill bit to prevent the drill bit from going too deep.
- Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 2 rivets.WARNING:
Be careful of the drilled rivets, as they may be hot.
NOTE:- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.

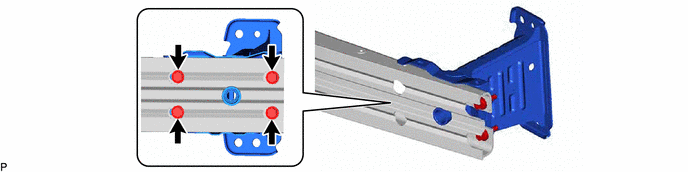

- Remove the 4 bolts and front side member bracket sub-assembly LH.
- REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type A)
- Use the same procedure as for the LH side.
- REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type B)
HINT:
Perform this procedure only when replacement of the front side member bracket sub-assembly is necessary.
- REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type B)
- Use the same procedure as for the LH side.
- REMOVE NO. 2 FRONT BUMPER SPACER (w/ Bracket)
HINT:
Perform this procedure only when replacement of the front side member bracket sub-assembly is necessary.

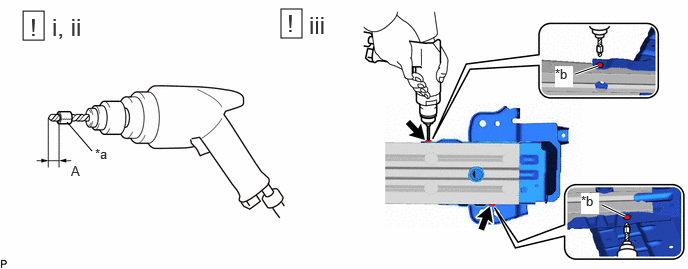

*a Tape *b Flange - Insert a 6.0 mm (0.236 in.) drill bit into a drill.
- Tape the 6.0 mm (0.236 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.
Standard Measurement
Area Measurement Area Measurement A 5.0 mm (0.197 in.) - - NOTE:Tape the 6.0 mm (0.236 in.) drill bit to prevent the drill bit from going too deep.
- Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 2 rivets.WARNING:
Be careful of the drilled rivets, as they may be hot.
NOTE:- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.
- REMOVE NO. 1 FRONT BUMPER SPACER (w/ Bracket)
- Use the same procedure as for the LH side.
