Removal [12/2022 - ]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [12/2022 - ]
  2. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 3

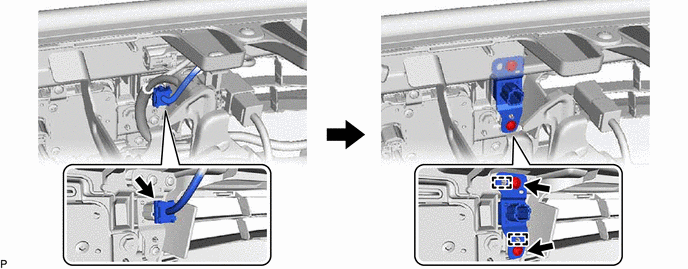

  3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. GTY1143228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
