Removal [12/2022 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

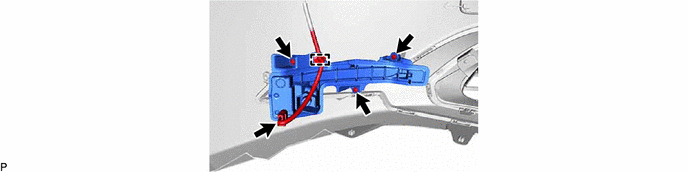

  2. REMOVE LED ILLUMINATION LIGHT
    1. GTY1140613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
