Disassembly [12/2022 - ]: Procedure

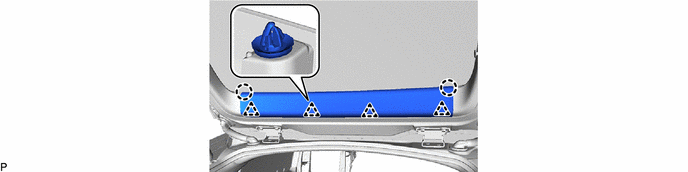

  1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY
    1. GTY1155471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

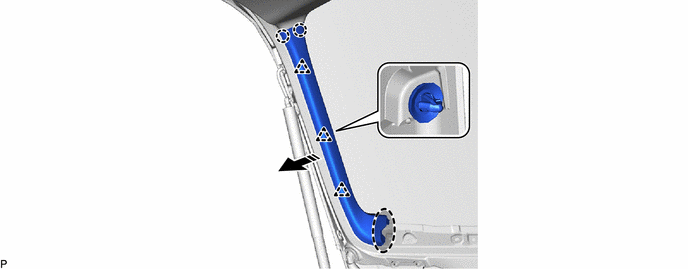

  2. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1148876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

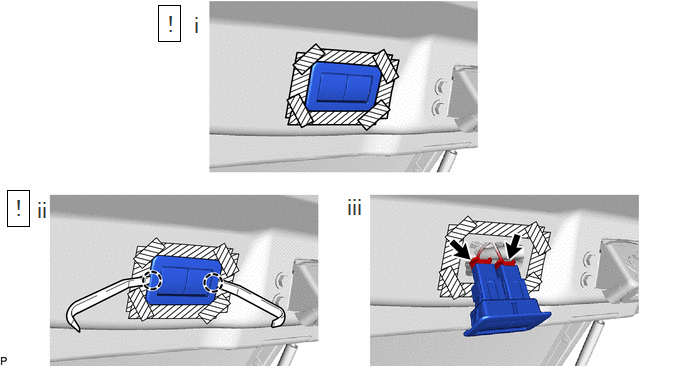

  4. REMOVE GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY (w/ Power Back Door)
    1. GTY1158897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the back door panel assembly as shown in the illustration.
      2. Using a moulding remover, disengage the 2 claws.
      3. Disconnect the 2 connectors to remove the glide door inside handle base assembly.

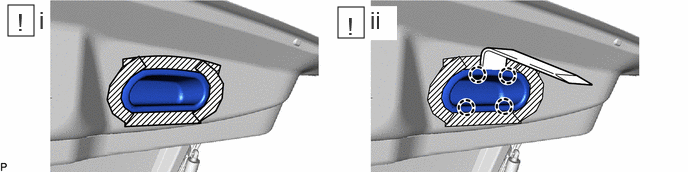

  5. REMOVE DOOR PULL HANDLE
    1. GTY1145483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the back door panel assembly as shown in the illustration.
      2. Using a moulding remover, disengage the 4 claws to remove the door pull handle.

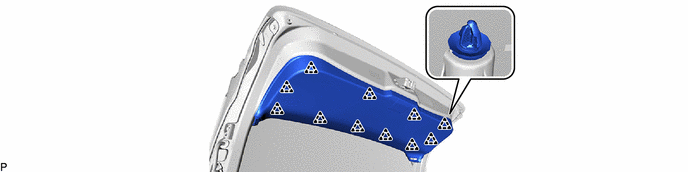

  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
    1. GTY1155573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

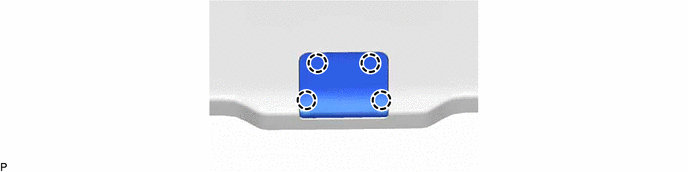

  7. REMOVE LUGGAGE COMPARTMENT TRIM COVER
    1. GTY1155575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  5

  9. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
  10. REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    See step  5

  11. REMOVE POWER BACK DOOR WARNING BUZZER (w/ Power Back Door)

    See step  5

  12. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    Refer to PROCEDURE - Step 5

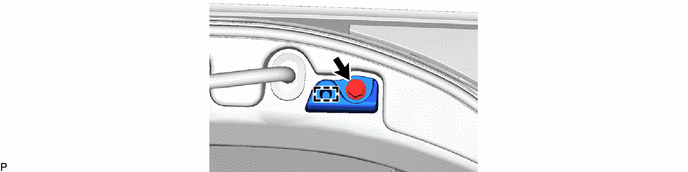

  13. REMOVE BACK DOOR LOWER STOPPER LH
    1. GTY1139569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BACK DOOR LOWER STOPPER RH
    1. Use the same procedure as for the LH side.
  15. REMOVE BACK DOOR OUTSIDE GARNISH LOWER MOULDING LH

    Refer to PROCEDURE - Step 7

  16. REMOVE BACK DOOR OUTSIDE GARNISH LOWER MOULDING RH
    1. Use the same procedure as for the LH side.
  17. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 9
  18. REMOVE TELEVISION REAR CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

  19. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

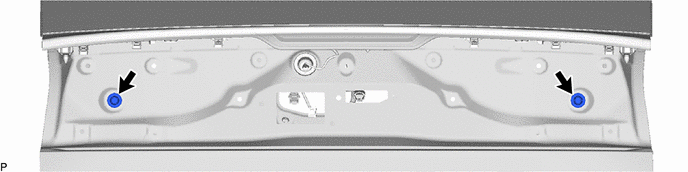

  20. REMOVE HOLE PLUG
    1. GTY1155577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

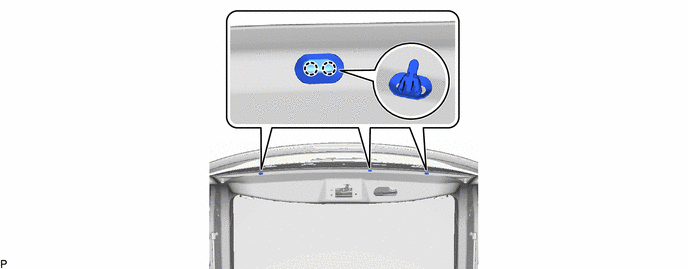

  21. REMOVE DOOR DUST PROOF SEAL
    1. GTY1155579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

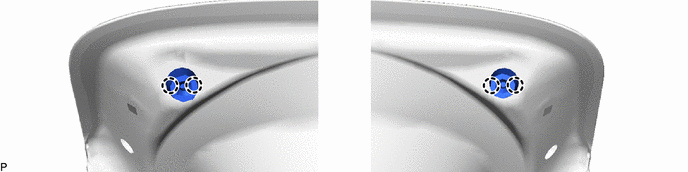

  22. REMOVE BACK DOOR PANEL CUSHION
    1. GTY1139566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE BACK DOOR STAY ASSEMBLY LH (w/o Power Back Door)
    See step  1
  24. REMOVE BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)
    1. Use the same procedure as for the LH side.
  25. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH (w/o Power Back Door)

    See step  2

  26. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH (w/o Power Back Door)
    1. Use the same procedure as for the LH side.
  27. REMOVE BACK DOOR STAY BOLT (w/o Power Back Door)

    See step  3

  28. REMOVE POWER BACK DOOR UNIT ASSEMBLY LH (w/ Power Back Door)
    See step  5
  29. REMOVE POWER BACK DOOR UNIT ASSEMBLY RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
  30. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH (w/ Power Back Door)

    See step  6

  31. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
  32. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH (w/ Power Back Door)

    See step  7

  33. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
